LC LED UT-65UV395P: 1206 UV Chip SMD LED 395nm

HIGHLIGHTS

APPLICATIONS

·        High Power UV-A LED

·        Wide Range of Wavelengths (365nm to 430nm)

·        High Power Dome Package

·        Low Thermal Resistance

·        RoHs Compliant Part

·        Purification and Sterilization

·        Curing for Ink, Adhesive and Coating

·        Inspection and Detection

·        Medical and Industrial Instrumentation

·        Black Light





DEVICE DIMENSIONS



A close up of text on a black background

Description automatically generated



Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation

90

mW

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Soldering Recommendation

Reflow soldering: 260°C For 5 Seconds

Hand soldering: 300°C For 3 Seconds



(1)  Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 20mA

3.0

3.6

V

Reverse Voltage

VR

IR = 10mA





5

V

Radiant Intensity

IV

IF = 20mA

17

23

mW

Viewing Angle

2q1/2

IF = 20mA



170



Deg.

Peak Wavelength

lD

IF = 20mA

395



400

nm

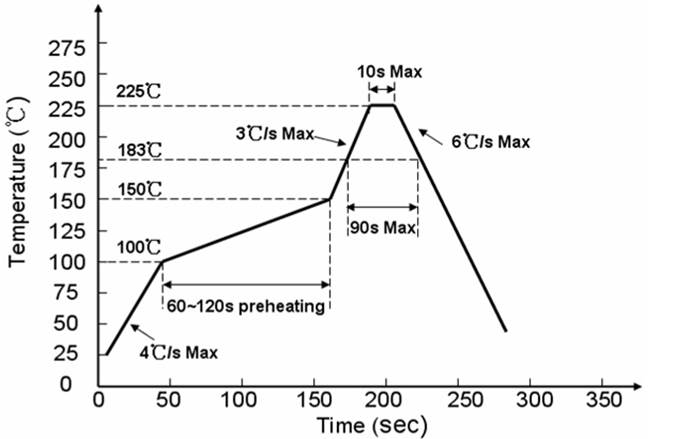

Suggest IR Reflow for Lead Solder



A close up of a map

Description automatically generated

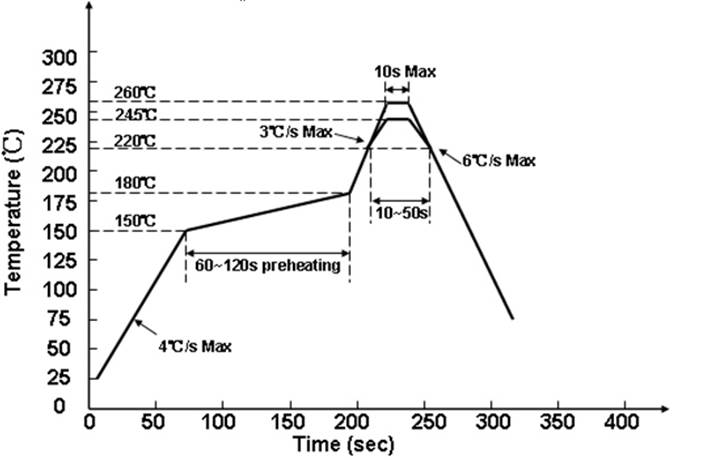

Suggest IR Reflow for Pb Free Solder



A close up of a map

Description automatically generated

(1)  Recommended Soldering Temperature 245+50C. Maximum Soldering Temperature of 2600C





Recommended PCB Solder Pad

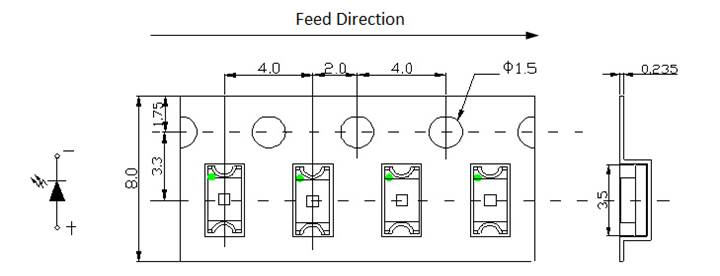

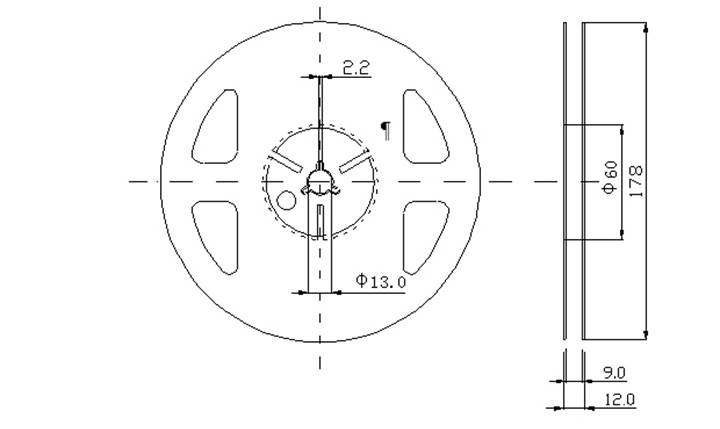

Tape and Reel Package Dimensions



A picture containing text

Description automatically generated
