LC LED-UT-392UW:  Reverse Mount 0603 Chip SMD Warm White

Reverse Mount 1.6mm x 0.8mm x 0.6mm 0603 Chip SMD (170 Degree)

PRODUCT DESCRIPTION



(1) RoHS Compliant Part

(5) Indicator and Backlighting Applications

(2) SMD Assembly or Manual Soldering

(6) Reverse Mount SMD

(3) Moisture Sensitive Component

(7) Water Clear Len

(4) Bin Sorted by Vf, Wavelength, Intensity

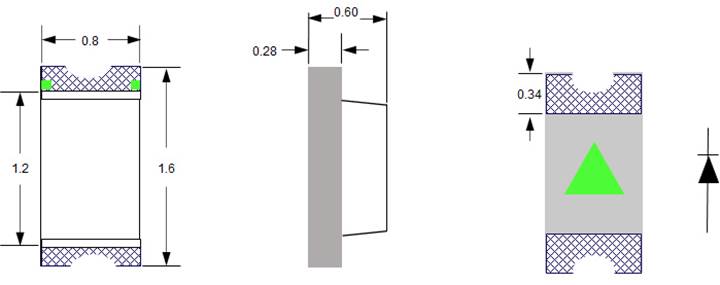

Diagram

Description automatically generated





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Electro-Static (ESD) Charge

2500

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse width of 1/10 duty and 0.10msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

2.8



3.5

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

2800

K

Viewing Angle

2q1/2

IF = 20mA



170



Deg.

Luminous Intensity

IV

IF = 20mA

400

850

mcd

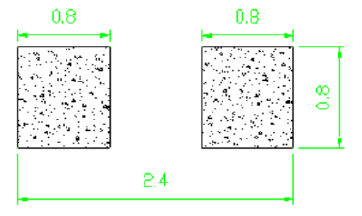

Recommended Solder Pad



Scatter chart

Description automatically generated with medium confidence

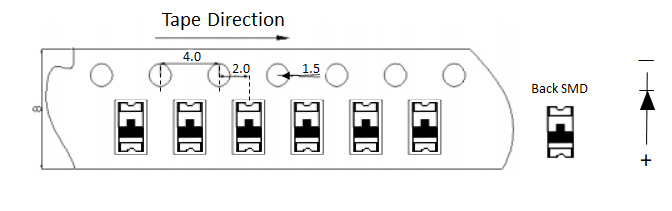

Tape Reel Specification (4000 pcs per Reel)



A picture containing diagram

Description automatically generated

LC LED Corporation
