LC LED-UT-352UR:  Reverse Mount 1206 Chip SMD Red

Reverse Mount 3.2mm x 1.6mm x 1.1mm Chip SMD (170 Degree)

PRODUCT DESCRIPTION



(1) RoHS Compliant Part

(5) Indicator and Backlighting Applications

(2) SMD Assembly or Manual Soldering

(6) Reverse Mount SMD

(3) Moisture Sensitive Component

(7) Water Clear Len

(4) Bin Sorted by Vf, Wavelength, Intensity







Diagram

Description automatically generated





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Avg. Forward Current

30

mA

Electro-Static (ESD) Charge

2500

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse width of 1/10 duty and 0.10msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

1.8



2.3

V

Reverse Voltage

VR

IR = 10mA





5

V

Dominant Wavelength

lD

IF = 20mA

625

nm

Viewing Angle

2q1/2

IF = 20mA



170



Deg.

Luminous Intensity

IV

IF = 20mA

145

250

mcd

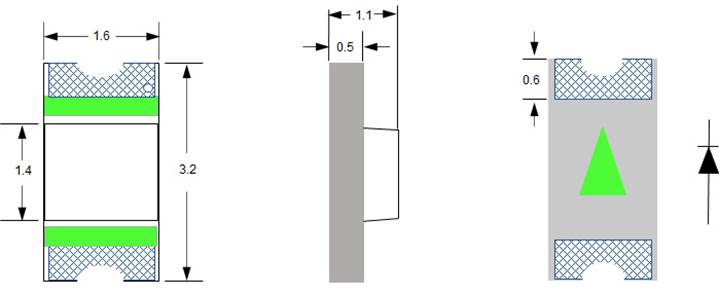

Recommended Solder Pad



Diagram

Description automatically generated

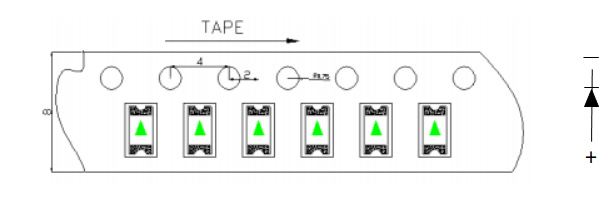

Tape Reel Specification (3000 pcs per Reel)



Graphical user interface, diagram

Description automatically generated

LC LED Corporation
