LC LED UT-352RGB4E: Reverse Mount RGB Chip SMD LED

Reverse Mount 3.2mm x 1.25mm x 1.1mm RGB Chip SMD (140 Degree) Anode Clear Len

PRODUCT DESCRIPTION



(1) RoHS Compliant Part

(5) Indicator and Backlighting Applications

(2) SMD Assembly or Manual Soldering

(6) Reverse Mount SMD

(3) Moisture Sensitive Component

(7) Water Clear Len

(4) Bin Sorted by Vf, Wavelength, Intensity

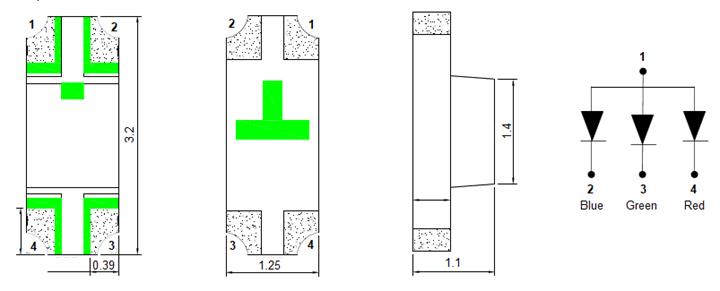

DEVICE DIMENSIONS



Diagram, engineering drawing

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

GREEN

BLUE

UNITS

DC Forward Current

20

20

20

mA

Peak Pulse Forward Current (1)

100

100

100

mA

Reverse Voltage (IR = 10mA)

5

5

5

VR

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Soldering Recommendation

Reflow soldering: 260C For 5 Seconds

Hand soldering: 300C For 3 Seconds

(1) Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage (Red)

VF

IF = 20mA

1.8

2.4

V

DC Forward Voltage (Green)

VF

IF = 20mA

2.8

3.5

V

DC Forward Voltage (Blue)

VF

IF = 20mA

2.8

3.5

V

Luminous Intensity (Red)

IV

IF = 20mA

150



300

mcd

Luminous Intensity (Green)

IV

IF = 20mA

450



900

mcd

Luminous Intensity (Blue)

IV

IF = 20mA

150



300

mcd

Viewing Angle

2q1/2

IF = 20mA

140

Deg.

Dominant Wavelength (Red)

lD

IF = 20mA

620

630

nm

Dominant Wavelength (Green)

lD

IF = 20mA

520

530

nm

Dominant Wavelength (Blue)

lD

IF = 20mA

460

470

nm

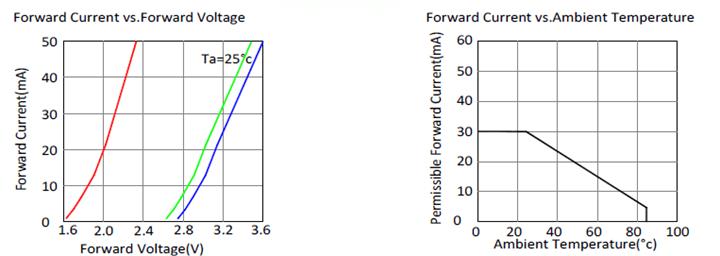

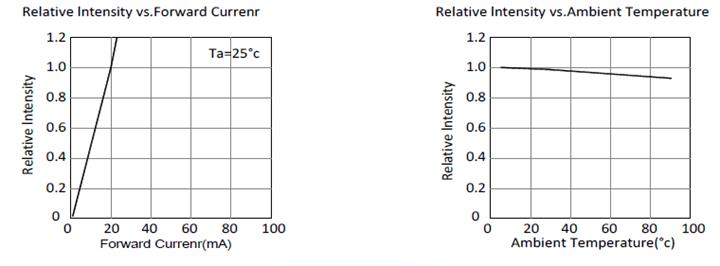

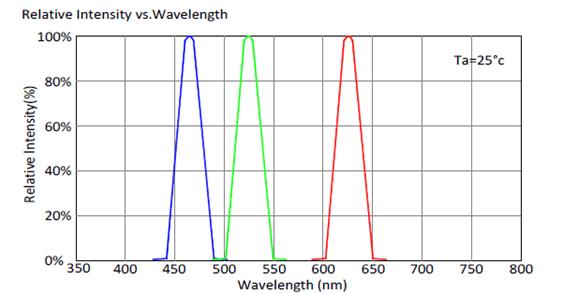

Electro-Optical Curve Characteristics

Chart, line chart

Description automatically generated



Chart

Description automatically generated



Chart

Description automatically generated

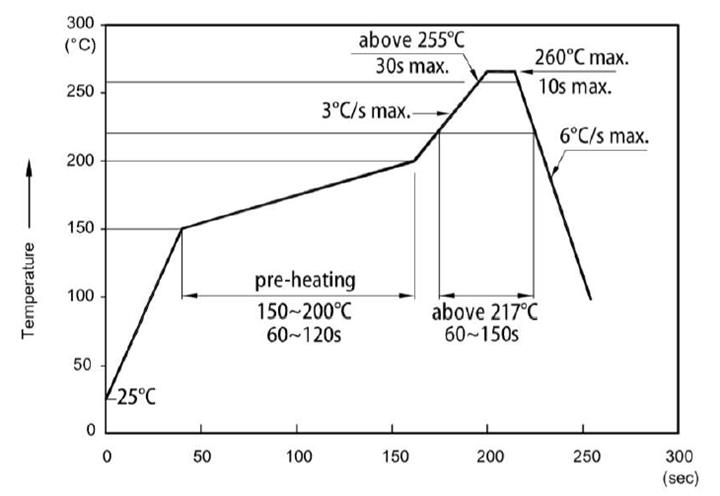

Suggest Solder Reflow Profile



Chart, diagram, line chart

Description automatically generated





Recommended PCB Solder Pad



Chart, box and whisker chart

Description automatically generated

LC LED Corporation
