GENERAL APPILCATIONS

Our Bright White T5/T8 LED bulb creates a sunny lively environment producing natural day light for both indoor and outdoor use. Ideal for:

·         Studio or Work Shop (Task Areas)

·         Home, Office, Kitchens, Closets, Garages

Perfect for commercial lighting applications, where energy savings and maintenance cost is a premium,

·         Indoor Stadium Lighting

·         Gyms Can Use Our T5/T8 LED Bulbs for Lighting Up Work Out Areas & Locker Rooms

·         Hospitals Can Use Our T5/T8 to Light Up Open Spaces & Hallways

·         Department Stores Can Use Our T5/T8 LED Bulbs for General Lighting and Specific Show Areas Such as Make-Up Counters

·         Ideal for Banks for Lighting Up Entire Work & Customer Spaces Such as Teller Counters, Deposit Box Areas

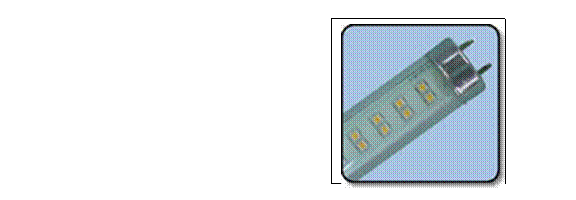

DESIGN HIGHLIGHTS

      Light Output Equivalent to 20W Fluorescent,

      65% More Energy Efficient,

      Lasts 3X longer, Up to 10 Years,

      Environmentally Friendly, Contains No Hazardous Materials Such as Mercury,

    Emitting Color Cool White,

    No Need for Secondary Luminaries Such as Lensed Diffusers or Troffers,

      Consumes 10W of Power,

      G13 PIN Type, Color Rendering > 85R









































PRODUCT SPECIFICATION



PARAMETER

MIN.

TYPICAL

MAX.

Luminous Flux (lumens)

864



1,152

Color Temperature (Kelvin) Pure White

5000



7000

Voltage AC

85VAC



265VAC

Power Consumption (Watts)

10



12

Operating Temperature (0C)

-20

25

45

Operating Life (Hours)



50,000



Viewing Angle (Degree)

170

Note:  To be use in a dry environment, ambient temperature operating range of -20C to 45C, not recommended to be use in close fixtures where the temperature may exceed 45C.

RUNS ON DIRECT 110VAC, REQUIRES INTERNAL BALLAST TO BE BYPASS OR REMOVE BEFORE USE
