LC LED SLT-5050TUY: 5050 Super Yellow SMD LED

HIGHLIGHTS

APPLICATIONS

·        5.0mm x 5.0mm PLCC-6 SMD LED

·        Low Power Consumption

·        Long Operating Life

·        RoHS Compliant Part

·        General Lighting

·        Task Lighting

·        Consumer Devices

·        Industrial and Medical Instrumentation





DEVICE DIMENSIONS

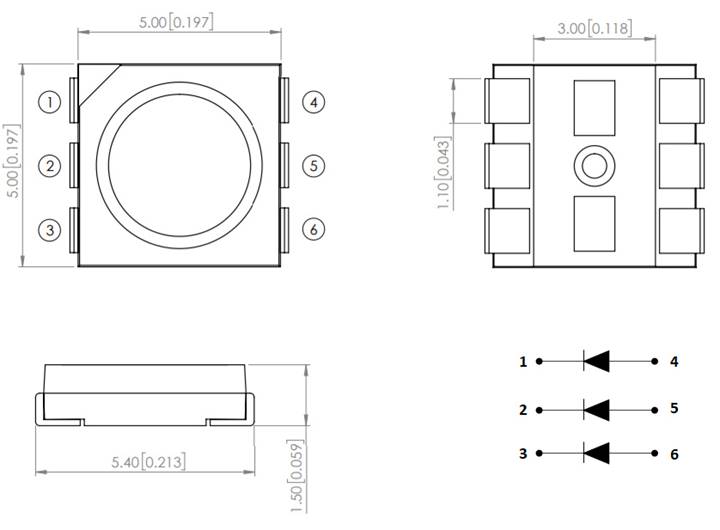

Diagram, engineering drawing

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation

300

mW

DC Forward Current

3 x 30

mA

Peak Pulse Forward Current (1)

3 x 100

mA

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Electro-Static (ESD) Charge

2500

V



(1)  Pulse conditions of 1/10 duty and 0.1msec width per led die





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 60mA

1.8

2.4

V

Peak Wavelength

lD

IF = 60mA

590

nm

Intensity

IV

IF = 60mA

1,800

2,300

mcd

Viewing Angle

2q1/2

IF = 60mA



140



Deg.

Reverse Voltage

VR

IF = 60mA





5

V


LC LED Corporation
