LC LED SLT-358UV275P: High Power UVC SMD LED

HIGHLIGHTS

APPLICATIONS

        High Power UVC LED

        Wavelength 270nm

        High Power SMD Package

        Low Thermal Resistance

        RoHS Compliant Part

        Purification and Sterilization

        Medical Products

        Industrial Applications

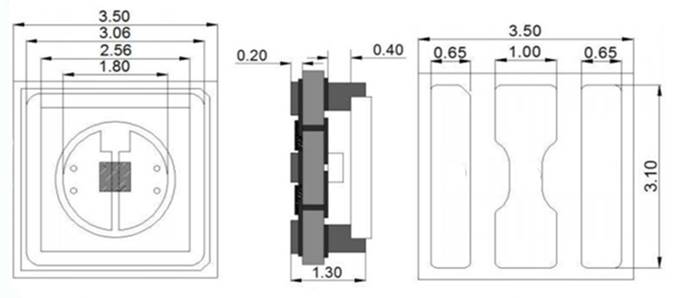

DEVICE DIMENSIONS



Chart, waterfall chart

Description automatically generated





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

100

mA

Peak Pulse Forward Current (1)

200

mA

Junction Temperature

90

C/W

Electro-Static Discharge (ESD)

5000

V

Operating Temperature

-25 to +80

C

Storage Temperature

-30 to +85

C



(1) Maximum pulse conditions of 1/10 duty and 0.1msec pulse width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 100mA

4.0

7.0

V

Reverse Voltage

VR

IR = 10mA





5

V

Radiant Intensity

IV

IF = 100mA

14



29

mW

Viewing Angle

2q1/2

IF = 100mA



120



Deg.

Peak Wavelength

lD

IF = 100mA

270

278

285

nm





Bin
Code


Min.


Max.

Intensity Bin Code

L1

14mW

18mW

L2

18mW

23mW

L3

23mW

29mW







Vf Bin Code

V1

4.0V-5.0V

V2

5.0V-6.0V

V3

6.0V-7.0V







ELECTRO-OPTICAL CURVE CHARACTERISTICS

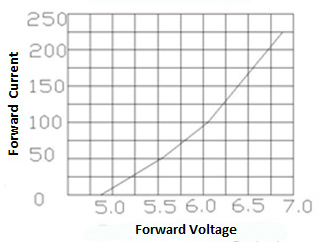

VOLTAGE VS CURRENT

Chart, line chart

Description automatically generated

CURRENT VS RELATIVE INTENSITY

Chart, line chart

Description automatically generated

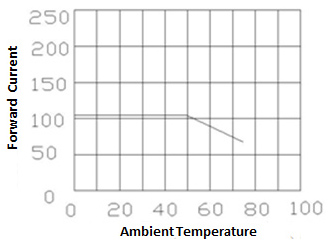

TEMPERATURE VS CURRENT

Chart, line chart

Description automatically generated

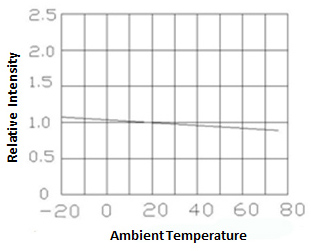

TEMPERATURE VS RELATIVE INTENSITY

Chart, line chart

Description automatically generated

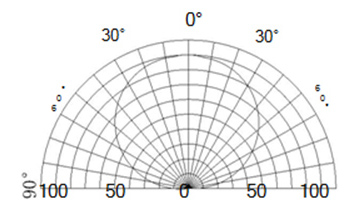

RELATIVE INTENSITY VS VIEWING ANGLE

Chart, radar chart

Description automatically generated

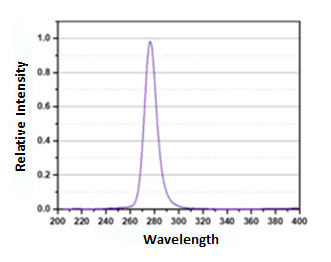

PEAK WAVELENGTH VS INTENSITY

Chart, line chart

Description automatically generated
