LC LED R500TW2D:  Milky Diffused 5mm 12V White LED



LC LED 12V 5mm LED Lamp Diffused (75 Degree)

PRODUCT DESCRIPTION



(1)  Design for 12VDC Operation

(4)  High Intensity LED Die Suitable for Outdoor Uses

(2)  No External Wiring or Resistor

(5)  Max. Current Load of 20mA (12VDC)

(3)  Incorporates Built-In Internal Resistor Chip

(6)  RoHS Compliant Part





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Max. DC Forward Voltage

12

V

DC Forward Current

20

mA

Avg. Forward Current

20

mA

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 20mA

8

12

13

V

Reverse Current

IR

IF = 20mA





100

mA

Dominant Wavelength

lD

IF = 20mA

5000

7000

K

Viewing Angle

2q1/2

IF = 20mA



75



Deg.

Luminous Intensity

IV

IF = 20mA

4,000



8,000

mcd

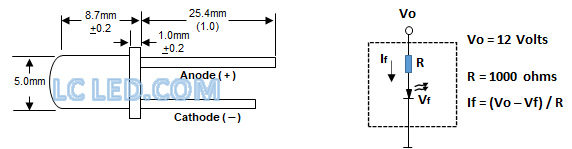

DEVICE DRAWING

Diagram

Description automatically generated
