R300TG5D: 3mm 12V Green LED
LC LED 12V 3mm T1 LED Lamp Color Transparent (40 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1) Design for 12VDC Operation |
(4) High Intensity LED Die Suitable for Outdoor
Uses |
|
(2) No External Wiring or Resistor |
(5) Max. Current Load of 20mA (12VDC) |
|
(3) Incorporates Built-In Internal Resistor
Chip |
(6) RoHS Compliant Part |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
Max. DC Forward Voltage |
12 |
V |
|
DC Forward Current |
20 |
mA |
|
Avg. Forward Current |
20 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage |
VF |
IF
= 20mA |
8 |
12 |
13 |
V |
|
Reverse
Current |
IR |
IF
= 20mA |
|
|
100 |
mA |
|
Dominant
Wavelength |
lD |
IF
= 20mA |
525 |
nm |
||
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
40 |
|
Deg. |
|
Luminous
Intensity |
IV |
IF
= 20mA |
7,000 |
|
12,000 |
mcd |

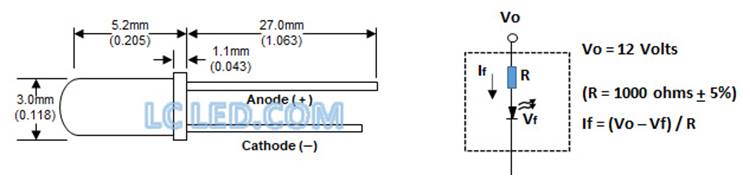

DEVICE DRAWING
|
LC LED Corporation |
