PAR38–110W



110W FLOOD LIGHT
BULB REPLACEMENT


GENERAL APPILCATIONS

►     Our PAR 38 True Warm White is design for vivid colorization enhancement, ideal for:

·     Highlighting Graphic Details

·     Illuminating Large Display Areas and Art Works

·     Photography Lighting

►     General Purpose Uses Such as:

·     Signage Illumination

·     Commercial & Residential Lighting


PRODUCT SPECIFICATION


TECHNICAL HIGHLIGHTS

►     Design as a Direct 110W Bulb Replacement

►     Uses 12 X 1W Power LED Emitter

►     Operating Life:  50,000 hrs

►     Operating Voltage 85VAC-260VAC

►     Low Power Consumption of 12.8W

►    Wide Viewing Angle of 60 Degrees


PARAMETER

MIN.

TYPICAL

MAX.

Luminous Flux (Lumens)

1,078



1,500

Color Temperature (Kelvin) Warm White

2700



3500

Color Temperature (Kelvin) Cool White

6000



7000

Power Consumption (Watts)

12.5



15

Voltage AC (50 Hz to 60 Hz)

85



260

Operating Temperature (0C)

-20



40

Storage Temperature (0C)

-20



85

Viewing Angle (Degree)

60

Input Current (Amps)

3A



3.6A

Note:  Our PAR 38 Floodlight is to be use in a dry environment, ambient temperature operating range of -20C to 40C, not recommended to be use in close fixtures where the temperature may exceed 40C.



par-38

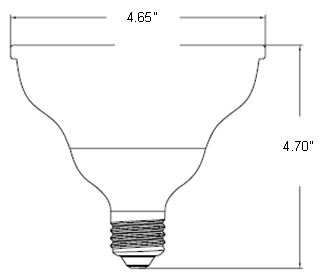

DEVICE DIAGRAM


LC LED Corporation
