LC LED-N500TBR4D/H: 5mm
Super Blue & Red Bicolor LED
LC LED T1 ¾ 5mm Blue and Red 30 Degree Clear LED Lamp With Straight Leads
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) Super Bright
Bi-Color 5mm Blue & Red LED Lamp |
(5) Sun Light
Viewable LED Lamp |
|
(3) Excellent Color
Mixing Characteristics |
(6) Rugged Design
Suitable for Indoor & Outdoor Lighting |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse width of 1/10 duty and 0.10msec
width, for long operating life max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Blue) |
VF |
IF
= 20mA |
2.8 |
3.0 |
3.5 |
V |
|
Forward Voltage
(Red) |
VF |
IF
= 20mA |
1.7 |
|
2.3 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 20mA |
464 |
|
475 |
nm |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
624 |
|
635 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
30 |
|
Deg. |
|
Luminous Intensity
(Blue) |
IV |
IF
= 20mA |
1,800 |
|
3,200 |
mcd |
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
4,000 |
|
6,500 |
mcd |

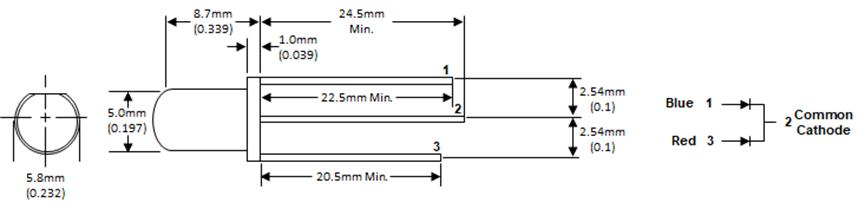

DEVICE DRAWING
|
LC LED Corporation |
