LC LED-N300U540V4D: 3mm UV 365nm & 400nm LED Common Anode

HIGHLIGHTS

APPLICATIONS

        High Power UV-A LED

        Wide Range of Wavelengths (365nm to 430nm)

        High Power Dome Package

        Low Thermal Resistance

        RoHS Compliant Part

        Purification and Sterilization

        Curing for Ink, Adhesive and Coating

        Inspection and Detection

        Medical and Industrial Instrumentation

        Black Light





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

20

mA

Peak Pulse Forward Current (1)

30

mA

Avg. Forward Current

20

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1) Pulse width of 1/10 duty and 10msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (365nm)

VF

IF = 20mA

3.5

4.0

V

Forward Voltage (400nm)

VF

IF = 20mA

3.0

3.6

V

Reverse Voltage

VR

IR = 10mA





5

V

Peak Wavelength (365nm)

lD

IF = 20mA

365



370

nm

Peak Wavelength (400nm)

lD

IF = 20mA

400



410

nm

Viewing Angle

2q1/2

IF = 20mA



30



Deg.

Radiant Power (365nm)

IE

IF = 20mA

10

mW

Radiant Power (400nm)

IE

IF = 20mA

40

mW

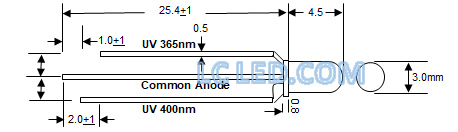

DEVICE DRAWING



A diagram of a machine

Description automatically generated
