LCSM-5614YG21: SMD Alpha-Numeric Green 0.56 Inch (14.2mm) LED Display (Gray Background) Anode

PRODUCT DESCRIPTION



(1) SMD Alpha-Numeric 0.56 Inch (14.2mm) Height

(5)  Gray Color Background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow, Orange, Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED/ORANGE

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCSM-5614TW21

InGaN
White

5,500K

10

3.0

3.3

85 mcd

LCCS-5614TB21

InGaN
Blue

465

10

3.0

3.3

68 mcd

LCSM-5614TG21

InGaN
Green

525

10

3.0

3.3

89 mcd

LCSM-5614TUR21

AlInGaP
Red

630

10

1.8

2.3

60 mcd

LCSM-5614YG21

AlInGaP
Green

571

10

1.7

2.1

45 mcd

LCSM-5614UY21

AlInGaP
Yellow

590

10

1.7

2.1

50 mcd

LCSM-5614UD21

AlInGaP
Orange

605

10

1.7

2.3

65 mcd









MECHNICAL DIMENSIONS



Diagram

Description automatically generated

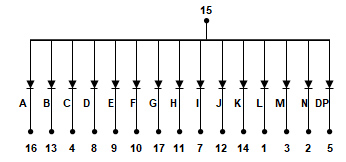

INTERNAL CIRCUIT LAYOUT



A drawing of a person

Description automatically generated              Chart, box and whisker chart

Description automatically generated
