LCSD-3012TUR21: Surface Mount Red 0.3 Inch (7.62mm) LED Display (Gray Background) Anode

PRODUCT DESCRIPTION



(1) SMD Display 0.3 Inch (7.62mm) Digit Height

(5)  Gray Color Background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCSD-3012TW21

InGaN
White

5,500K

10

3.0

3.5

225 mcd

LCSD-3012TB21

InGaN
Blue

465

10

3.0

3.5

168 mcd

LCSD-3012TUR21

AlInGaP
Red

630

10

1.8

2.3

135 mcd

LCSD-3012YG21

AlInGaP
Green

571

10

1.7

2.1

90 mcd

LCSD-3012UY21

AlInGaP
Yellow

588

10

1.7

2.1

85 mcd

LCSD-3012UD21

AlInGaP
Amber

592

10

1.7

2.1

90 mcd

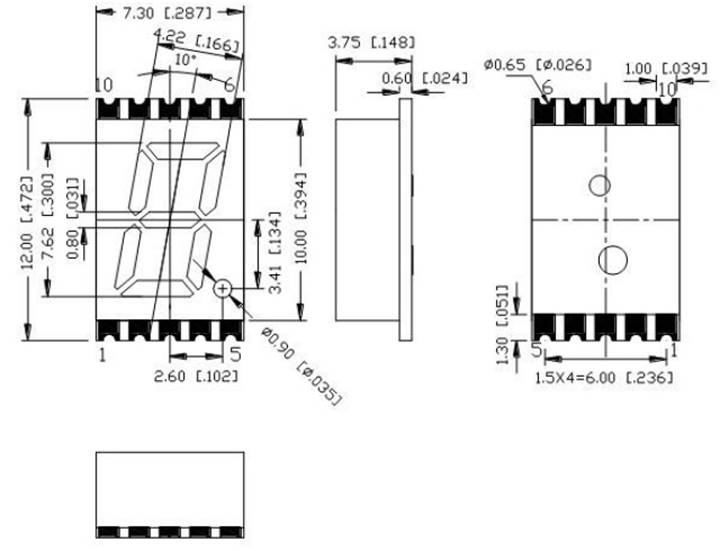

MECHNICAL DIMENSIONS



A close up of a map

Description automatically generated





INTERNAL CIRCUIT LAYOUT



A close up of text on a white background

Description automatically generated                      A picture containing object, clock

Description automatically generated
