LCSD-2812TUR11: Surface Mount Red 0.28 Inch (7.0mm) LED Display Anode

PRODUCT DESCRIPTION



(1) SMD Display 0.28 Inch (7.0mm) Digit Height

(5)  Black Color Background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCSD-2812TW11

InGaN
White

5,500K

10

3.0

3.5

210 mcd

LCSD-2812TB11

InGaN
Blue

465

10

3.0

3.5

158 mcd

LCSD-2812TUR11

AlInGaP
Red

630

10

1.8

2.3

125 mcd

LCSD-2812YG11

AlInGaP
Green

571

10

1.7

2.1

85 mcd

LCSD-2812UY11

AlInGaP
Yellow

588

10

1.7

2.1

80 mcd

LCSD-2812UD11

AlInGaP
Amber

592

10

1.7

2.1

85 mcd

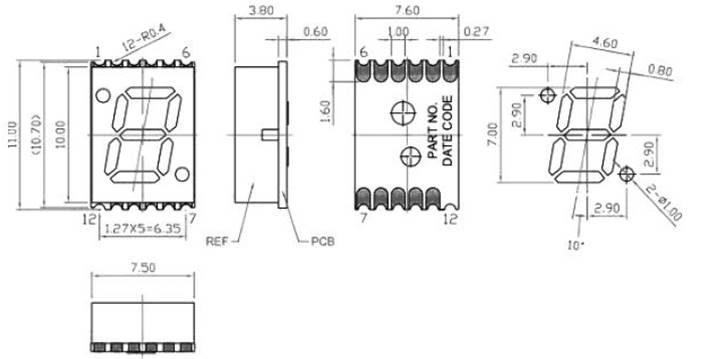

MECHNICAL DIMENSIONS



A close up of a map

Description automatically generated

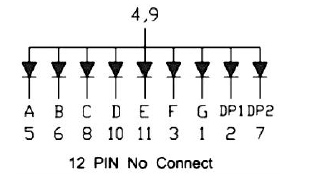

INTERNAL CIRCUIT LAYOUT



A picture containing clock

Description automatically generated               A close up of a logo

Description automatically generated

LC LED Corporation
