LCSA-5014TB11:  Alpha-Numeric Single Digit 0.5 Inch (12.7mm) Blue LED Display

PRODUCT DESCRIPTION



(1) 0.50 Inch (12.7mm) Single Digit Alpha-Numeric LED

(5)  Gray or black color background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

WHITE

UNITS

DC Forward Current Per Segment

30

30

25

30

20

mA

Peak Current Per Segment (1)

100

100

100

100

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

30

30

25

mA

Reverse Voltage (2)

3

V

Operating Temperature

-25 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing of the dot matrix is not recommend, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCSA-5014AUR11

AlGaAs
Red

660

10

1.8

2.3

35,000 ucd

LCSA-5014TB11

InGaN
Blue

468

10

3.3

4.0

45,000 ucd

LCSA-5014YG11

GaP
Green

568

10

1.9

2.3

35,000 ucd

LCSA-5014UY11

AlInGaP
Amber

590

10

1.8

2.3

35,000 ucd

LCSA-5014TW11

InGaN
White

5,500K

10

3.3

4.0

75,000 ucd

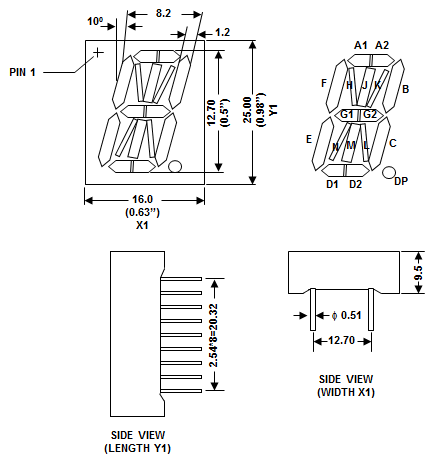

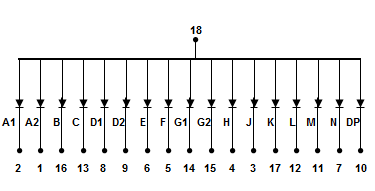

PIN CONNECTION & DEVICE DIAGRAM




LC LED Corporation
