LCSA-3914AUR11: Alpha-Numeric Single Digit 0.39 Inch (9.9mm)
Red LED Display
PRODUCT DESCRIPTION |
|
(1) 0.39 Inch
(9.9mm) Single Digit Alpha-Numeric LED |
(5) Gray or black color background |
(2) Low current
operation |
(6) Common Anode |
(3) Excellent
color and font characteristics |
(7) RoHs Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum
Rating (Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
UNITS |
DC Forward
Current Per Segment |
30 |
30 |
25 |
30 |
20 |
mA |
Peak
Current Per Segment (1) |
100 |
100 |
100 |
100 |
25 |
mA |
Avg.
Forward Current (Pulse Operation) Per Segment |
30 |
30 |
30 |
30 |
25 |
mA |
Reverse
Voltage (2) |
3 |
V |
||||
Operating
Temperature |
-25
to +85 |
0C |
||||
Storage
Temperature |
-30
to +85 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
(2)
Reverse biasing of the dot matrix is not recommend, will cause damage to
the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCSA-3914AUR11 |
AlGaAs |
660 |
10 |
1.8 |
2.3 |
25,000
ucd |
LCSA-3914TB11 |
InGaN |
468 |
10 |
3.3 |
4.0 |
45,000
ucd |
LCSA-3914YG11 |
GaP |
568 |
10 |
1.9 |
2.3 |
25,000
ucd |
LCSA-3914UY11 |
AlInGaP |
590 |
10 |
1.8 |
2.3 |
30,000
ucd |
LCSA-3914TW11 |
InGaN |
5,500K |
10 |
3.3 |
4.0 |
70,000
ucd |

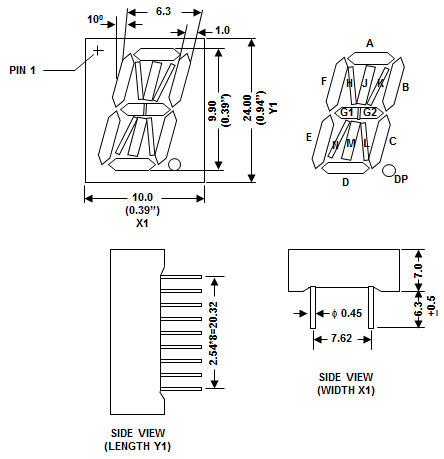

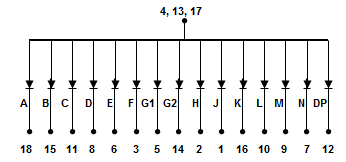

DEVICE
DIAGRAM & PIN CONNECTION
