LCSA-23016UY1C: Alpha-Numeric Single Digit Yellow 2.3 Inch (57.0mm) Cathode LED

PRODUCT DESCRIPTION



(1) 2.3 Inch (57.0mm) Alpha-Numeric Display

(5)  Gray or Black color background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)







PART NUMBER


DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCSA-23016TUR1C

AlInGaP
Red

630

10

3.5

4.2 (1)

120,000 ucd

LCSA-23016TB1C

InGaN
Blue

468

10

6.0

7.4 (2)

90,000 ucd

LCSA-23016YG1C

AlInGaP
Green

568

10

3.6

4.3 (1)

80,000 ucd

LCSA-23016UY1C

AlInGaP
Amber

590

10

3.6

4.3 (1)

75,000 ucd

LCSA-23016TW1C

InGaN
White

5,500K

10

6.0

7.4 (2)

200,000 ucd

(1)     Cathode Decimal Point (DP) Vf = 1.8V ONLY uses one led chip for red, yellow and green color.

(2)     Cathode Decimal Point (DP) Vf = 3.3V ONLY uses one led chip for blue and white color.

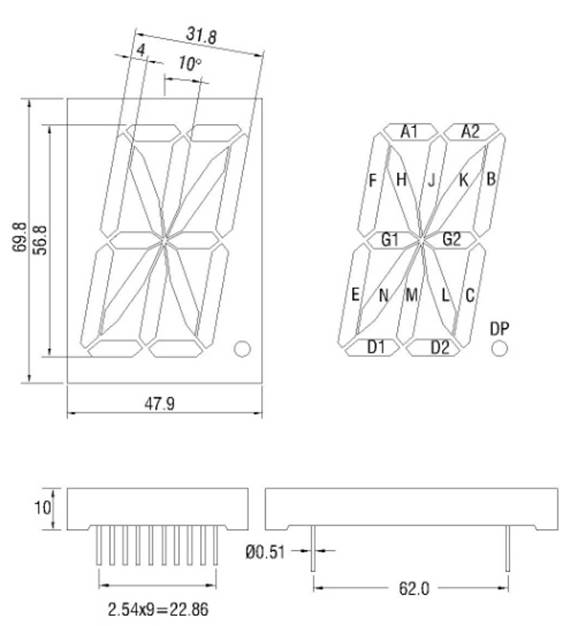

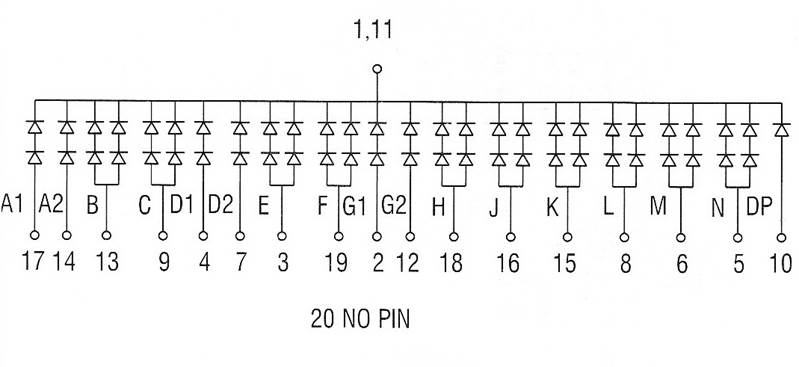

MECHNICAL DIMENSIONS & INTERNAL CIRCUIT LAYOUT






LC LED Corporation
