LCSA-23016TB11: Alpha-Numeric
Single Digit Blue 2.3 Inch (57.0mm) LED Anode
PRODUCT DESCRIPTION |
|
(1) 2.3 Inch
(57.0mm) Alpha-Numeric Display |
(5) Gray or Black color background |
(2) Low current
operation |
(6) Common Anode |
(3) Excellent color
and font characteristics |
(7) RoHs Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
|
DC Forward
Current Per Segment |
20 |
20 |
20 |
20 |
20 |
mA |
Peak Current
Per Segment (1) |
100 |
100 |
100 |
100 |
100 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
20 |
20 |
20 |
20 |
20 |
mA |
Reverse
Voltage |
5 |
V |
||||
Operating
Temperature |
-30
to +85 |
0C |
||||
Storage
Temperature |
-30
to +85 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCSA-23016TUR11 |
AlInGaP |
630 |
10 |
3.5 |
4.2
(1) |
120,000
ucd |
LCSA-23016TB11 |
InGaN |
468 |
10 |
6.0 |
7.4
(2) |
90,000
ucd |
LCSA-23016YG11 |
AlInGaP |
568 |
10 |
3.6 |
4.3
(1) |
80,000
ucd |
LCSA-23016UY11 |
AlInGaP |
590 |
10 |
3.6 |
4.3
(1) |
75,000
ucd |
LCSA-23016TW11 |
InGaN |
5,500K |
10 |
6.0 |
7.4
(2) |
200,000
ucd |
(1)
Cathode Decimal Point (DP) Vf = 1.8V
ONLY uses one led chip for red, yellow and green color.
(2)
Cathode Decimal Point (DP) Vf = 3.3V
ONLY uses one led chip for blue and white color.

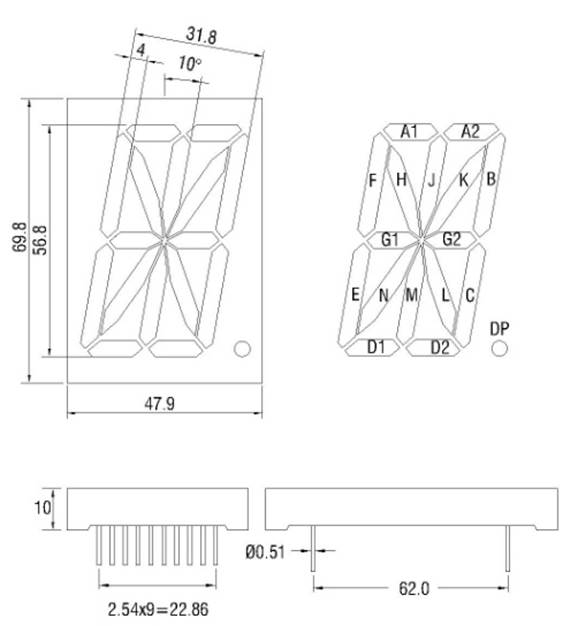

MECHNICAL

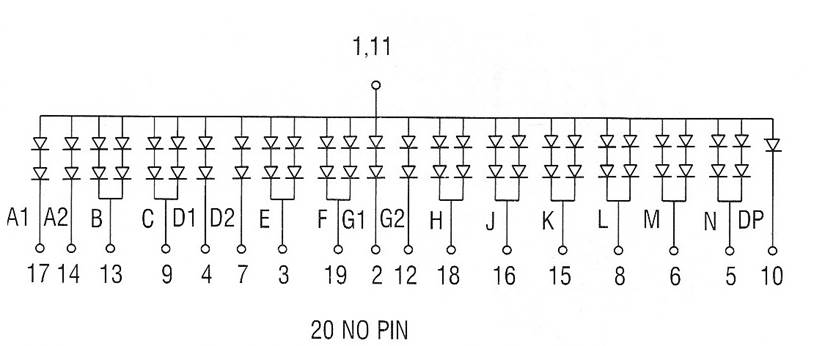

DIMENSIONS & INTERNAL CIRCUIT LAYOUT
LC LED Corporation |
