LCS-8016TB21: 7-Segment Blue Single Digit 0.80 Inch (20.32mm) LED Anode

PRODUCT DESCRIPTION



(1)  0.80 Inch (20.32mm) Digit Height

(5)  Low current operation

(2)  Common Anode

(6)  Excellent color and font characteristics

(3)  Gray Background

(7)  RoHs Compliant Part

(4)  Color:  Blue

(8)  Custom configuration available





Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

UNITS

DC Forward Current Per Segment

20

mA

Peak Current Per Segment (1)

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

mA

Reverse Voltage (2)

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing is not recommended, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-8016TB21

InGaN
Blue

465

10

3.0

3.3

85,000 ucd

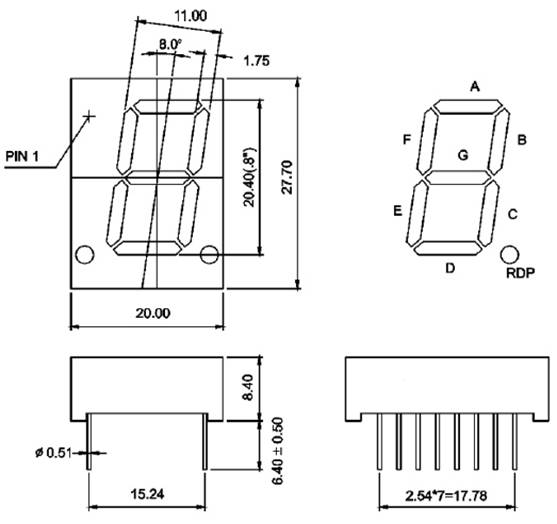

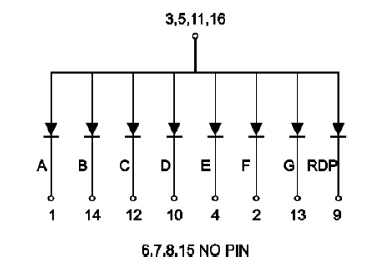

DEVICE DIAGRAM

A close up of text on a black background

Description automatically generated



A close up of a logo

Description automatically generated
