LCS-8015TRY1C: Bicolor 7-Segment
Red & Yellow Single Digit 0.8 Inch (20.4mm) LED Cathode
PRODUCT DESCRIPTION |
|
(1) 0.8 Inch (20.4mm) Digit Height |
(5) Low current operation |
(2) Common Cathode |
(6) Milky Diffused Segment |
(3) Black Background |
(7) Excellent color mixing characteristics |
(4) Bi-Color:
Red & Yellow |
(8) RoHs Compliant Part |
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
WHITE |
UNITS |
DC Forward
Current Per Segment |
20 |
mA |
Peak Current
Per Segment (1) |
25 |
mA |
Avg. Forward Current
(Pulse Operation) Per Segment |
25 |
mA |
Reverse
Voltage (2) |
5 |
V |
Operating
Temperature |
-30
to +85 |
0C |
Storage
Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
(2)
Reverse biasing is not recommended, will cause damage to the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-8015TRY1C |
AlInGaP |
625 |
10 |
1.8
|
2.3 |
80,000
ucd |
AlInGaP |
590 |
10 |
1.8 |
2.2 |
75,000
ucd |
DEVICE

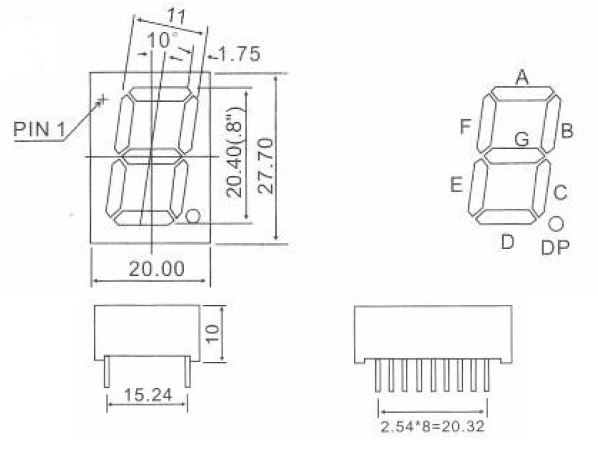

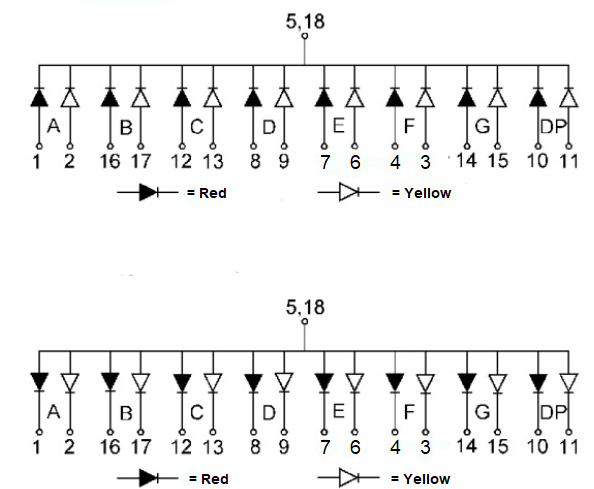

DIAGRAM
LC LED Corporation |
