LCS-568UV405B: 5W Power UV 405nm LED 20mm Heat Sink (140 Degree)

HIGHLIGHTS

APPLICATIONS

        High Power UV-A LED

        Wide Range of Wavelengths (365nm to 430nm)

        High Power Dome Package

        Low Thermal Resistance

        RoHs Compliant Part

        Purification and Sterilization

        Curing for Ink, Adhesive and Coating

        Inspection and Detection

        Medical and Industrial Instrumentation

        Black Light



Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power

5

W

DC Forward Current

1400

mA

Peak Pulse Forward Current (1)

2000

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

150

0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1) Pulse conditions of 1/10 duty and 0.1msec width

(2) This device has two LED die in parallel





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 1400mA

3.4

3.8

V

Radiant Intensity

IV

IF = 1400mA

1,000



1,200

mW

Viewing Angle

2q1/2

IF = 1400mA

140

Deg.

Peak Wavelength

lD

IF = 1400mA

405

410

nm

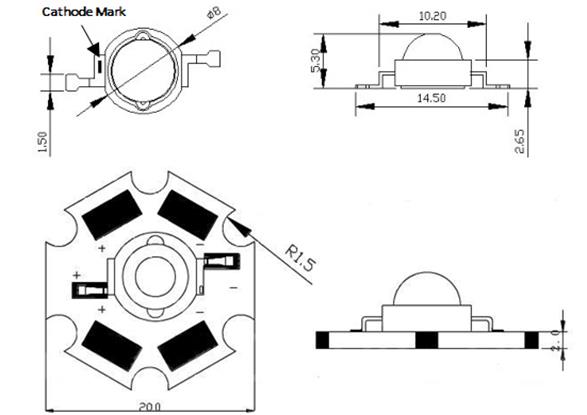

PACKAGE DIMENSIONS



A close up of text on a black background

Description automatically generated
