LCS-5612AUR1C: 7-Segment Red
Single Digit 0.56 Inch (Cathode)
PRODUCT DESCRIPTION |
|
(1) 0.56 Inch
(14.20mm) Digit Height |
(5) Black color background |
(2) Low current
operation |
(6) Common Cathode |
(3) Excellent color
and font characteristics |
(7) RoHs Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
UNITS |
DC Forward
Current Per Segment |
30 |
30 |
25 |
30 |
20 |
mA |
Peak Current
Per Segment (1) |
70 |
50 |
50 |
25 |
25 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
30 |
30 |
25 |
25 |
25 |
mA |
Derating
Linear From 250C Per Segment |
0.3 |
mA/0C |
||||
Reverse
Voltage (2) |
3 |
V |
||||
Operating
Temperature |
-25
to +85 |
0C |
||||
Storage Temperature |
-30
to +85 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
(2) Reverse
biasing is not recommended, will cause damage to the leds
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-5612AUR1C |
AlInGaP |
625 |
10 |
1.8 |
2.3 |
55,000
ucd |
LCS-5612TB1C |
InGaN |
468 |
10 |
3.3 |
4.0 |
65,000
ucd |
LCS-5612YG1C |
AlInGaP |
571 |
10 |
1.9 |
2.3 |
45,000
ucd |
LCS-5612UY1C |
AlInGaP |
590 |
10 |
1.8 |
2.3 |
48,000
ucd |
LCS-5612TW1C |
InGaN |
5,500K |
10 |
3.3 |
4.0 |
75,000
ucd |

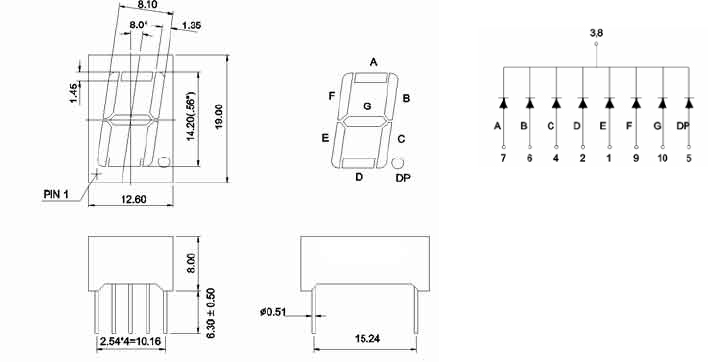

DEVICE DIAGRAM & PIN LAYOUT
PIN NO. |
|
|
|
1 |
Anode E |
6 |
Anode B |
2 |
Anode D |
7 |
Anode A |
3 |
Common Cathode DIG. 1 |
8 |
Common Cathode DIG. 2 |
4 |
Anode C |
9 |
Anode F |
5 |
Anode DP |
10 |
Anode G |
LC LED Corporation |
