LCS-558DRP: 3W Deep Red SMD LED 20mm Heat Sink

3W Deep Red SMD LED High Output 140 Degree

PRODUCT DESCRIPTION
(1) RoHS Compliant Part	(5) SMD Assembly or Manual Soldering
(2) High luminous flux, low power consumption	(6) Bin Sorted By Color, Intensity & Vf
(3) 3W SMD LED on 20mm heat sink	(7) Moisture Sensitive Component
(4) Ideal for general purpose lighting (both indoor and outdoor)

DESCRIPTION

		Luminous Flux (lm) @ 700mA
PART NO.	COLOR	MIN.	TYP.	VIEWING ANGLE
LCS-558DRP	Deep Red	45	65	140

ELECTRICAL AND OPTICAL CHARACTERISTICS AT 700mA (Ta = 25⁰C)

SYMBOL	PARAMETER		TYP.	Units	TEST CONDITIONS
lD	Dominant Wavelength		660	nm	IF= 700mA
VF	Forward Voltage	2.0	2.6	V
VR	Reverse Voltage	5
IR	Reverse Current		20	mA	VR = 5V

ABSOLUTE MAXIMUM RATING (Ta = 25⁰C)

PARAMETER	SYMBOL	TYPICAL	MAXIMUM	UNITS
Power Dissipation	PD		3000	mW
DC Forward Current	IF		700	mA
Operating Temperature	Topr	-30 to +85		^0C
Storage Temperature	Tstg	-30 to +100		^0C

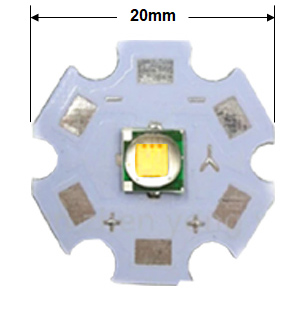

DEVICE DRAWING

LC LED Corporation
