LCS-558BP:  3W BLUE SMD LED 20mm Heat Sink

3W Blue SMD LED 140 Degree

PRODUCT DESCRIPTION





(1)  RoHS Compliant Part

(5)  SMD Assembly or Manual Soldering

(2)  High luminous flux, low power consumption

(6)  Bin Sorted By Color, Intensity & Vf

(3)  3W SMD LED on 20mm heat sink

(7)  Moisture Sensitive Component

(4)  Ideal for general purpose lighting (both indoor
      and outdoor)



DESCRIPTION







Luminous Flux (lm)
@ 700mA



PART NO.

COLOR

MIN.

TYP.

VIEWING ANGLE

LCS-558BP

Blue

40

55

140



ELECTRICAL AND OPTICAL CHARACTERISTICS AT 700mA (Ta = 250C)



SYMBOL

PARAMETER

MIN.

MAX.

Units

TEST CONDITIONS

lD

Dominant Wavelength

460

470

nm




I
F= 700mA

VF

Forward Voltage

3.0

3.6

V

VR

Reverse Voltage

5





IR

Reverse Current



20

mA

VR = 5V

ABSOLUTE MAXIMUM RATING (Ta = 250C)



PARAMETER

SYMBOL

TYPICAL

MAXIMUM

UNITS

Power Dissipation

PD



3000

mW

DC Forward Current

IF



700

mA

Operating Temperature

Topr

-30 to +100

0C

Storage Temperature

Tstg

-30 to +100

0C

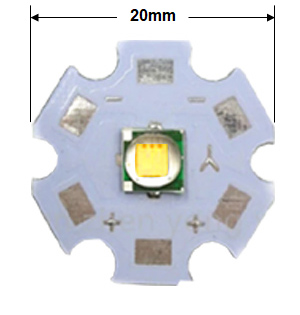

DEVICE DRAWING



A picture containing text

Description automatically generated

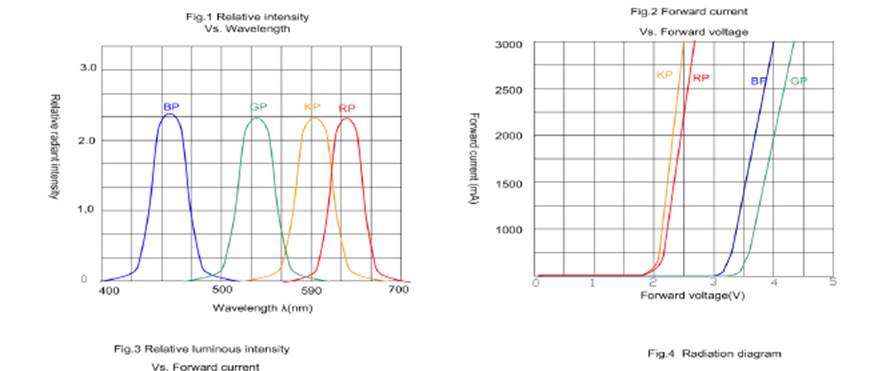

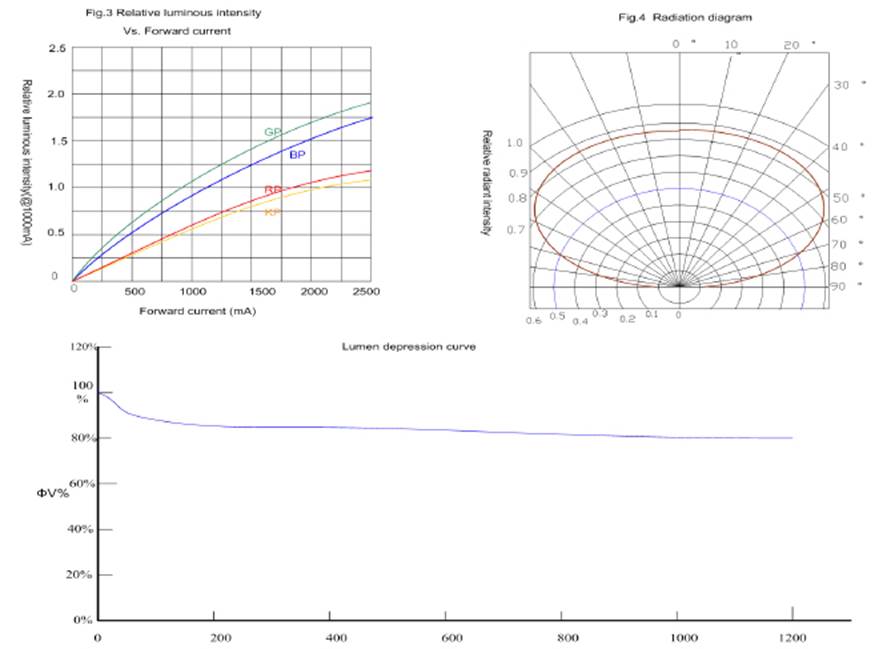

TYPICAL ELECTRO-OPTICAL CHARACTERISTICS CURVES

Chart

Description automatically generated

Chart

Description automatically generated

LC LED Corporation
