LCS-4034TW11: 7-Segment White 14 PIN 0.40 Inch (10.16mm) LED Anode

PRODUCT DESCRIPTION
(1) 0.40 Inch (10.16mm) Digit Height	(5) Low Current Operation
(2) Common Anode	(6) Excellent Color and Font characteristics
(3) Black Background	(7) RoHS Compliant Part
(4) Color: White, Blue, Red, Green, Purple, Orange, Yellow

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	WHITE	UNITS
DC Forward Current Per Segment	20	mA
Peak Current Per Segment (1)	25	mA
Avg. Forward Current (Pulse Operation) Per Segment	25	mA
Reverse Voltage (2)	3	V
Operating Temperature	-30 to +85	^0C
Storage Temperature	-30 to +85	^0C

(1) Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2) Reverse biasing of the dot matrix is not recommended, will damage the leds

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 10mA)
LCS-4034TW11	InGaN White	5,500K	10	2.8	3.6	85,000 ucd
LCS-4034TB11	InGaN Blue	465nm	10	2.8	3.6	68,000 ucd
LCS-4034TP11	InGaN Purple	Purple	10	2.8	3.6	78,000 ucd
LCS-4034AUR11	AlInGaP Red	625	10	1.8	2.2	48,000 ucd
LCS-4034YG11	AlInGaP Green	568	10	1.9	2.3	45,000 ucd
LCS-4034UY11	AlInGaP Yellow	590	10	1.8	2.3	45,000 ucd

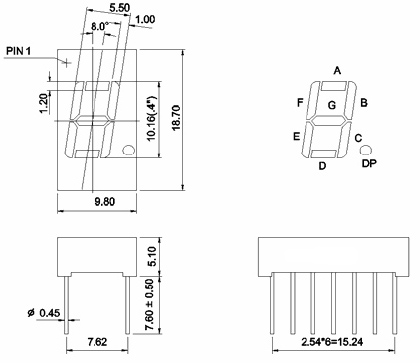

DEVICE DIAGRAM

PIN NO.
1	Cathode A	8	Cathode D
2	Cathode F	9	Cathode DP
3	Common Anode DIG. 1	10	Cathode C
4	NO PIN	11	Cathode G
5	NO PIN	12	NO PIN
6	NO PIN	13	Cathode B
7	Cathode E	14	Common Anode DIG. 2
