LCS-40012YG1C: 7-Segment Single Digit Green 4.0 Inch (100.0mm) LED Cathode

PRODUCT DESCRIPTION



(1) 4.0 Inch (100.0mm) Digit Height

(5)  Gray or black color background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-30 to +85

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)







PART NUMBER


DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCS-40012TUR1C

AlInGaP
Red

630

10

9.0 (1)

11.0

120,000 ucd

LCS-40012TB1C

InGaN
Blue

468

10

16.25 (2)

17.5

130,000 ucd

LCS-40012YG1C

AlInGaP
Green

568

10

9.0 (1)

11.0

120,000 ucd

LCS-40012UY1C

AlInGaP
Amber

590

10

9.0 (1)

11.0

120,000 ucd

LCS-40012TW1C

InGaN
White

5,500K

10

16.25 (2)

17.5

120,000 ucd

(1)     Cathode Decimal Point (DP) Vf = 1.8V ONLY uses one led chip for red, yellow and green color.

(2)     Cathode Decimal Point (DP) Vf = 3.3V ONLY uses one led chip for blue and white color.

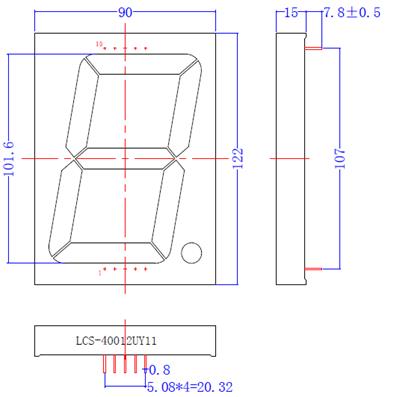

MECHNICAL DIMENSIONS & INTERNAL CIRCUIT LAYOUT







A picture containing object, clock, looking

Description automatically generatedA close up of a device

Description automatically generated
