LCS-40012TG1C: Single Digit Super
Pure Green 525nm 4.0 Inch (100.0mm) LED Cathode
PRODUCT DESCRIPTION |
|
(1) 4.0 Inch
(100.0mm) Digit Height |
(5) Gray or black color background |
(2) Low current
operation |
(6) Common Cathode |
(3) Excellent color
and font characteristics |
(7) RoHs Compliant Part |
(4) Colors: White, blue, red, yellow and green |
|
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
RED |
AMBER |
GREEN |
BLUE |
WHITE |
|
DC Forward
Current Per Segment |
20 |
20 |
20 |
20 |
20 |
mA |
Peak Current Per
Segment (1) |
100 |
100 |
100 |
100 |
100 |
mA |
Avg. Forward
Current (Pulse Operation) Per Segment |
20 |
20 |
20 |
20 |
20 |
mA |
Reverse
Voltage |
5 |
V |
||||
Operating
Temperature |
-30
to +85 |
0C |
||||
Storage
Temperature |
-30
to +85 |
0C |
(1) Pulse conditions of 1/10 duty and 0.1msec
width, for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
|
|
MAX. |
|
|
LUMINOUS INTENSITY |
LCS-40012TUR1C |
AlInGaP |
630 |
10 |
9.0
(1) |
11.0 |
120,000
ucd |
LCS-40012TB1C |
InGaN |
468 |
10 |
16.25
(2) |
17.5 |
155,000
ucd |
LCS-40012YG1C |
AlInGaP |
568 |
10 |
9.0
(1) |
11.0 |
120,000
ucd |
LCS-40012UY1C |
AlInGaP |
590 |
10 |
9.0
(1) |
11.0 |
120,000
ucd |
LCS-40012TW1C |
InGaN |
5,500K |
10 |
16.25
(2) |
17.5 |
165,000
ucd |
LCS-40012TG1C |
InGaN |
525nm |
10 |
16.25
(2) |
17.5 |
185,000
ucd |
(1) Cathode Decimal
Point (DP) Vf = 1.8V ONLY uses one led chip for red, yellow, and green color
(1)
(2)
Cathode Decimal Point (DP) Vf = 3.3V ONLY uses one led chip for pure
green, blue and white color.

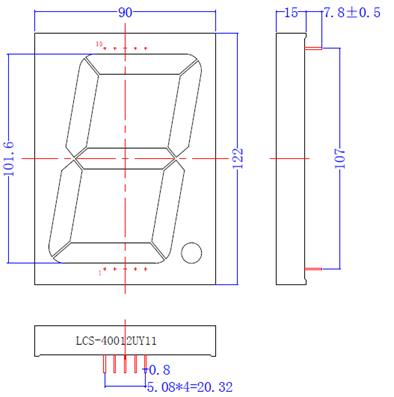

MECHNICAL
DIMENSIONS & INTERNAL CIRCUIT LAYOUT
LC LED Corporation |
