LCS-3912TW11: 7-Segment White 0.39 Inch (9.9mm) LED Anode

PRODUCT DESCRIPTION



(1) 0.39 Inch (9.9mm) Digit Height

(5)  Black Color Background

(2) Low Current Operation

(6)  Common Anode

(3) Excellent Color and Font Characteristics

(7)  RoHS Compliant Part

(4) Colors:  White, purple, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

25

25

25

25

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER


DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCS-3912TW11

InGaN
White

5,500K

10

3.0

3.6

115 mcd

LCS-3912TP11

InGaN
Purple

Purple

10

3.0

3.6

100 mcd

LCS-3912TB11

InGaN
Blue

468

10

3.0

3.6

85 mcd

LCS-3912AUR11

AlInGaP
Red

630

10

1.8

2.3

60 mcd

LCS-3912YG11

AlInGaP
Green

571

10

1.8

2.1

50 mcd

LCS-3912UY11

AlInGaP
Yellow

590

10

1.8

2.1

50 mcd

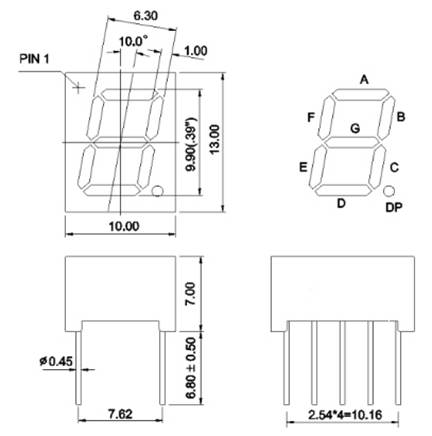

MECHNICAL DIMENSIONS



device-correct-0

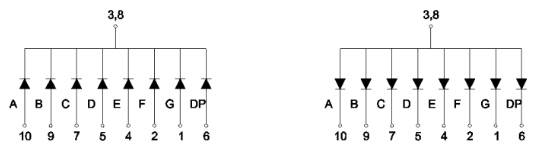

INTERNAL CIRCUIT LAYOUT

correct-circuit-0
