LCS-3612TW11: 7-Segment White Single Digit 0.36 Inch (9.14mm)

PRODUCT DESCRIPTION
(1) 0.36 Inch (9.14mm) Digit Height	(5) Black Color Background
(2) Low current operation	(6) Common Anode
(3) Excellent color and font characteristics	(7) RoHS Compliant Part
(4) Colors: White, blue, red, yellow and green

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	RED	AMBER	GREEN	BLUE	WHITE	UNITS
DC Forward Current Per Segment	30	30	25	30	20	mA
Peak Current Per Segment (1)	70	50	50	25	25	mA
Avg. Forward Current (Pulse Operation) Per Segment	30	30	25	25	25	mA
Derating Linear From 25^0C Per Segment	0.3					mA/^0C
Reverse Voltage (2)	3					V
Operating Temperature	-25 to +85					^0C
Storage Temperature	-30 to +85					^0C

(1) Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2) Reverse biasing of the dot matrix is not recommend, will cause damage to the leds

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	MAX. REVERSE CURRENT / SEGMENT (mA)	VF (V) TYP	VF (V) MAX.	LUMINOUS INTENSITY / SEGMENT AVERAGE (IF = 10mA)
LCS-3612TW11	InGaN White	5,500K	10	3.3	3.8	65,000 ucd
LCS-3632TB11	InGaN Blue	468	10	3.3	3.8	48,000 ucd
LCS-3632TP11	InGaN Purple	X =0.34 y = 0.28	10	3.3	3.8	32,000 ucd
LCS-3632AUR11	AlInGaP Red	630	10	1.8	2.3	45,000 ucd
LCS-3632YG11	AlInGaP Green	458	10	1.9	2.3	35,000 ucd
LCS-3632UY11	AlInGaP Yellow	590	10	1.8	2.3	35,000 ucd

PIN MAPPING TABLE

PIN NO.
1	Common Anode PIN	6	Common Anode PIN
2	Cathode F	7	Cathode DP
3	Cathode G	8	Cathode C
4	Cathode E	9	Cathode B
5	Cathode D	10	Cathode A

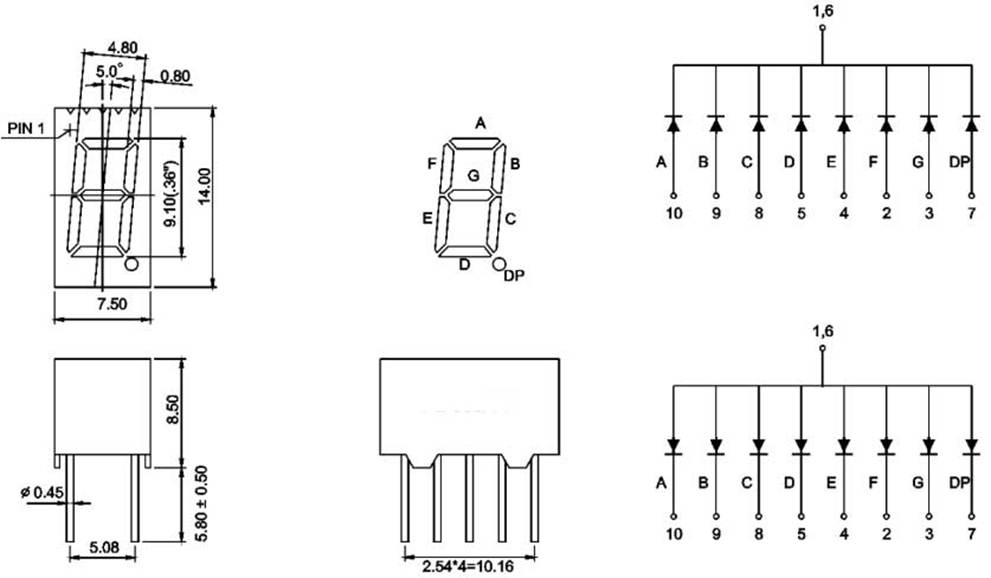

DEVICE DIAGRAM
