LCS-357UV405P: 3W High Power UV 405nm LED 20mm MCPCB (60 Degree)

HIGHLIGHTS

APPLICATIONS

        High Power UV-A LED

        Wide Range of Wavelengths (365nm to 430nm)

        High Power Dome Package

        Low Thermal Resistance

        RoHs Compliant Part

        Purification and Sterilization

        Curing for Ink, Adhesive and Coating

        Inspection and Detection

        Medical and Industrial Instrumentation

        Black Light



Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power

3

W

DC Forward Current

700

mA

Peak Pulse Forward Current (1)

1000

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

150

0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1) Pulse conditions of 1/10 duty and 0.1msec width





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 700mA

3.4

3.8

V

Radiant Intensity

IV

IF = 700mA

750



850

mW

Viewing Angle

2q1/2

IF = 700mA

60

Deg.

Peak Wavelength

lD

IF = 700mA

405

410

nm

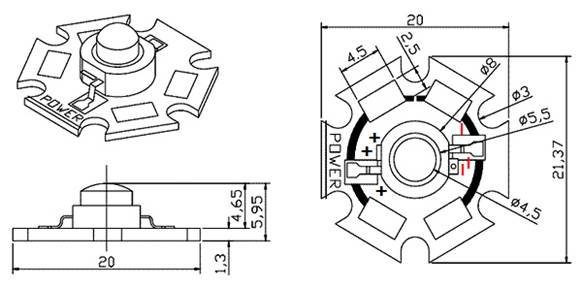

PACKAGE DIMENSIONS



A close up of a map

Description automatically generated

Description: Description: Description: C:\images\red.gif

LC LED Corporation
