LCS-23017TGUR1C: Bicolor 7-Segment Super Green & Red Single Digit 2.3 Inch (57mm) LED Cathode

PRODUCT DESCRIPTION



(1)  2.3 Inch (57mm) Digit Height

(5)  Low current operation

(2)  Common Cathode

(6)  Milky Diffused Segment

(3)  Black Background

(7)  Excellent color mixing characteristics

(4)  Bi-Color:  Super Green & Red

(8)  RoHs Compliant Part





Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

UNITS

DC Forward Current Per Segment

20

mA

Peak Current Per Segment (1)

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

mA

Reverse Voltage (2)

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing is not recommended, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-23017TGUR1C

AlInGaP
Red

625

10

6.8

8.6

90,000 ucd

InGaN
Green

525

10

12.0

14.0

205,000 ucd

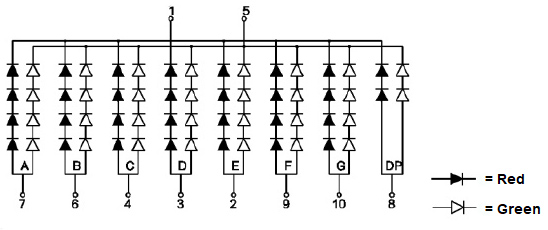

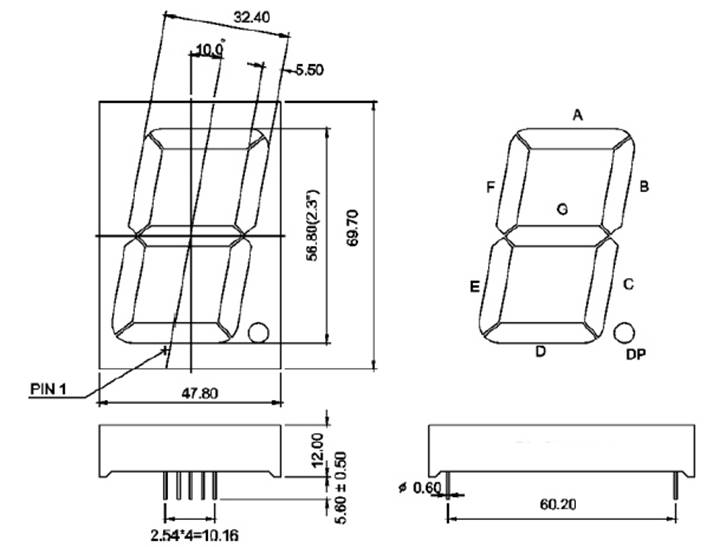

DEVICE DIAGRAM

A close up of text on a white surface

Description automatically generated



A picture containing clock

Description automatically generated
