LCS-15012YG1C: 7-Segment Single Digit Green 1.5 Inch (30.6 x 44.0mm)

PRODUCT DESCRIPTION



(1) 1.5 Inch (38.10mm) Digit Height

(5)  Black color background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHS REACH Compliant Part

(4) Colors:  White, blue, red, yellow and green







Absolute Maximum Rating (Ta = 250C)

PARAMETER

RED

AMBER

GREEN

BLUE

WHITE

UNITS

DC Forward Current Per Segment

30

30

30

30

25

mA

Peak Current Per Segment (1)

120

110

100

120

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

30

30

30

30

20

mA

Reverse Voltage (2)

3

V

Operating Temperature

-40 to +90

0C

Storage Temperature

-40 to +100

0C

(1)  1/10 Duty Cycle and 0.1msec max. pulse width and for long operating life recommended max. of 20mA

(2)  Reverse biasing is not recommend, will cause damage to the leds







Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-15012TUR1C

AlInGaP
Red

635

10

3.6(1)

4.2

75,000 ucd

LCS-15012TB1C

InGaN
Blue

468

10

6.0(2)

7.0

75,000 ucd

LCS-15012YG1C

AlInGaP
Green

568

10

3.6(1)

4.2

50,000 ucd

LCS-15012UY1C

AlInGaP
Amber

590

10

3.6(1)

4.2

60,000 ucd

LCS-15012TW1C

InGaN
White

5,500K

10

6.0(2)

7.0

75,000 ucd







PIN MAPPING TABLE

PIN NO.







1

Common Cathode PIN

6

Anode B

2

Anode E

7

Anode A

3

Anode D

8

Anode DP (1)

4

Anode C

9

Anode F

5

Common Cathode PIN

10

Anode G

(1)     Anode DP Vf = 1.8V ONLY uses one led chip for red, yellow and green color.

(2)     Anode DP Vf = 3.0V ONLY uses one led chip for blue and white color.

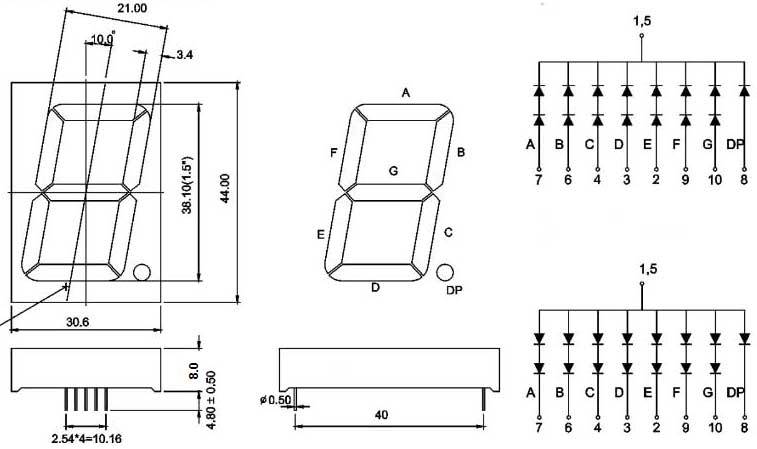

DEVICE DIAGRAM
