LCS-10018TGUR11: Bicolor 7-Segment Super Green & Super Red Single Digit 1 Inch (25.4mm) LED Anode

PRODUCT DESCRIPTION



(1)  1 Inch (25.4mm) Digit Height

(5)  Low current operation

(2)  Common Anode

(6)  Milky Diffused Segment

(3)  Black Background

(7)  Excellent color mixing characteristics

(4)  Bi-Color:  High Bright Green & Red LED Die

(8)  RoHs Compliant Part





Absolute Maximum Rating (Ta = 250C)

PARAMETER

WHITE

UNITS

DC Forward Current Per Segment

20

mA

Peak Current Per Segment (1)

25

mA

Avg. Forward Current (Pulse Operation) Per Segment

25

mA

Reverse Voltage (2)

5

V

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended

(2)  Reverse biasing is not recommended, will cause damage to the leds





Electro-optical Characteristics (Ta = 250C)





PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 10mA)

LCS-10018TGUR11

AlInGaP
Red

625

10

3.6

4.6

97,000 ucd

InGaN
Green

525

10

6.0

7.0

205,000 ucd



(1) DP Vf = 1.8V ONLY for red, yellow, and green color (uses one led chip)

(2) DP Vf = 3.3V ONLY for blue and white color (uses one led chip)

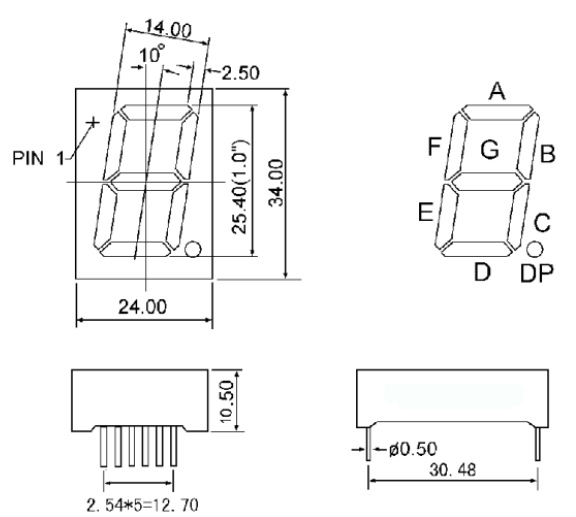

DEVICE DIAGRAM

A close up of text on a white background

Description automatically generated



A picture containing stove

Description automatically generated
