LCS-050G4P: 5W High Power Green LED 20mm Starboard (60 Degree)

HIGHLIGHTS

APPLICATIONS

·        5W Power Green LED With 20mm Heat Sink

·        Up to 1.4A Drive Current

·        Low Thermal Resistance

·        RoHs Compliant Part

·        Sun Light Viewable

·        Channel and Backlighting

·        Indoor and Outdoor Lighting





Absolute Maximum Rating (Ta = 250C)



PARAMETER

MAXIMUM RATING

UNITS

Power

5

W

DC Forward Current

1400

mA

Peak Pulse Forward Current (1)

2000

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Junction Temperature

150

0C

Lead Soldering Temperature

2600C for 5 Seconds Max. (1.6mm from Body)



(1)  Pulse conditions of 1/10 duty and 0.1msec width

(2)  This device has two LED die in parallel





Electro-optical Characteristics (Ta = 250C)



PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

DC Forward Voltage

VF

IF = 1400mA

3.0

3.6

V

Luminous Intensity

IV

IF = 1400mA

380



450

lm

Viewing Angle

2q1/2

IF = 1400mA

60

Deg.

Dominant Wavelength

lD

IF = 1400mA

520

530

nm

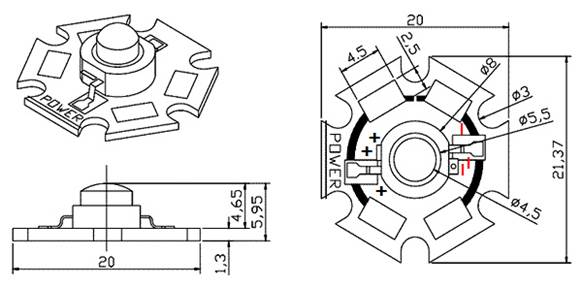

PACKAGE DIMENSIONS



A close up of a map

Description automatically generated
