LCS-010WB 1W High Power White
LED Emitter
LC
LED 1 Watt LED Heat Sink Series: 120
Degrees
Absolute
Maximum Rating
|
PARAMETER |
ABSOLUTE MAXIMUM |
|
DC Forward Current (mA) |
350 |
|
Peak Pulse Forward Current (mA) |
800
(1) |
|
Avg. Forward Current (mA) |
350 |
|
ESD Sensitivity |
+2500V |
|
LED Junction Temperature (0C) |
135 |
|
Aluminum-Core PCB Temperature(0C) |
105 |
|
Storage Temperature (0C) |
-40
to +100 |
|
Operating Temperature (0C) |
-40
to +85 |
|
Soldering Temperature (0C) |
2600C
for 3 seconds Max. |
(1) Pulse conditions of 1/10 duty and <
10msec pulse width
Electrical
and Flux Characteristics at 350mA (Ta = 250C)
|
|
|
VF (V) |
Luminous |
|
Temperature |
Thermal |
|
||
|
Part Number |
Color |
Min. |
Max. |
Min. |
Max. |
||||
|
LCE-010WB |
White |
3.0 |
3.6 |
110 |
140 |
1.0 |
-2 |
10 |
|
|
LCE-010BB |
Blue |
3.0 |
3.6 |
15 |
28 |
1.0 |
-2 |
10 |
120
Degrees |
|
LCE-010GB |
Green |
3.0 |
3.6 |
70 |
95 |
1.0 |
-2 |
10 |
|
|
LCE-010YB |
Amber |
2.0 |
2.6 |
30 |
48 |
2.4 |
-2 |
10 |
|
|
LCE-010RB |
Red |
2.0 |
2.6 |
35 |
50 |
2.4 |
-2 |
10 |
|
Optical
Characteristics at 350mA (Ta = 250C)
|
|
|
Dominant |
|
Temperature |
|
|
Part Number |
Color |
Min. |
Max. |
||
|
LCE-010WB |
White |
3500K |
10000K |
– |
– |
|
LCE-010BB |
Blue |
460nm |
490nm |
25 |
0.04 |
|
LCE-010GB |
Green |
510nm |
535nm |
35 |
0.04 |
|
LCE-010YB |
Amber |
590nm |
594nm |
20 |
0.05 |
|
LCE-010RB |
Red |
620nm |
645nm |
20 |
0.05 |
Forward Voltage & Photometric Flux Bin Code
|
|
Forward Voltage (V) |
|
|
Photometric Flux (lm) |
||
|
Bin Code |
Minimum |
Maximum |
|
Bin Code |
Minimum |
Maximum |
|
C |
1.83 |
2.07 |
|
J |
10 |
15 |
|
D |
2.07 |
2.31 |
|
K |
15 |
20 |
|
E |
2.31 |
2.55 |
|
L |
20 |
27 |
|
F |
2.55 |
2.79 |
|
M |
27 |
35 |
|
G |
2.79 |
3.03 |
|
N |
35 |
43 |
|
H |
3.03 |
3.27 |
|
O |
43 |
50 |
|
I |
3.27 |
3.51 |
|
P |
50 |
70 |
|
J |
3.51 |
3.75 |
|
Q |
70 |
90 |
|
K |
3.75 |
3.99 |
|
R |
90 |
115 |
|
|
|
|
|
S |
115 |
130 |

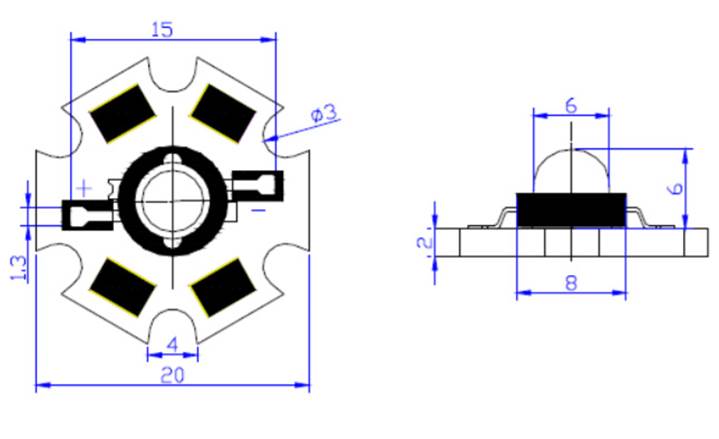

DEVICE DRAWING
