LCQD-5614TB1C: SMD Four Digit Blue 0.56 Inch (14.2mm) LED Display (Black Background) Cathode

PRODUCT DESCRIPTION



(1) SMD Display 0.56 Inch (14.2mm) Four Digit

(5)  Black Color Background

(2) Low current operation

(6)  Common Cathode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCQD-5614TW1C

InGaN
White

5,500K

10

3.0

3.3

220 mcd

LCQD-5614TB1C

InGaN
Blue

465

10

3.0

3.3

158 mcd

LCQD-5614TG1C

InGaN
Green

525

10

3.0

3.3

275 mcd

LCQD-5614TUR1C

AlInGaP
Red

630

10

1.8

2.3

130 mcd

LCQD-5614YG1C

AlInGaP
Green

571

10

1.7

2.1

85 mcd

LCQD-5614UY1C

AlInGaP
Yellow

590

10

1.7

2.1

90 mcd

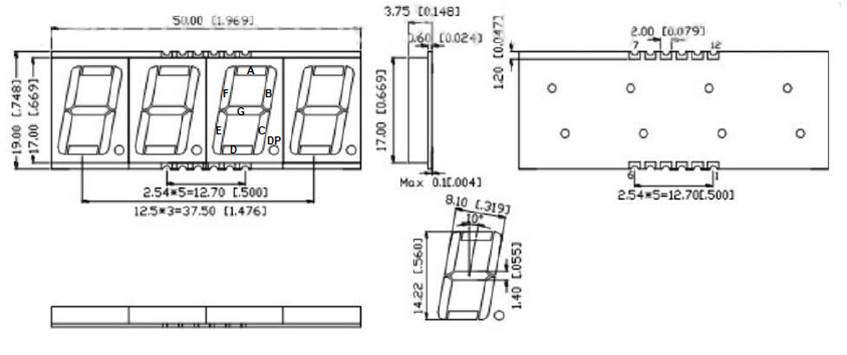

MECHNICAL DIMENSIONS



A close up of text on a white background

Description automatically generated

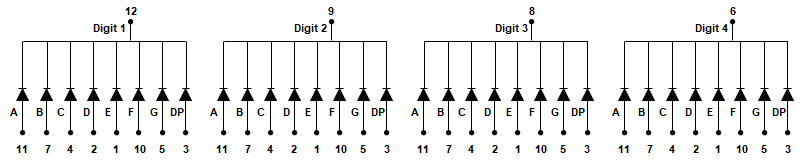

INTERNAL CIRCUIT LAYOUT



A close up of a device

Description automatically generated

LC LED Corporation
