LCQD-3014YG21: SMD Four Digit Green 0.3 Inch (7.62mm) LED Display (Gray Background) Anode

PRODUCT DESCRIPTION



(1) SMD Display 0.3 Inch (7.62mm) Four Digit

(5)  Gray Color Background

(2) Low current operation

(6)  Common Anode

(3) Excellent color and font characteristics

(7)  RoHs Compliant Part

(4) Colors:  White, Blue, Red, Yellow (Amber) & Green







Absolute Maximum Rating (Ta = 250C)



PARAMETER

RED

AMBER

GREEN

BLUE

WHITE



DC Forward Current Per Segment

20

20

20

20

20

mA

Peak Current Per Segment (1)

100

100

100

100

100

mA

Avg. Forward Current (Pulse Operation) Per Segment

20

20

20

20

20

mA

Reverse Voltage

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +85

0C

(1)  Pulse conditions of 1/10 duty cycle @ 1KHz





Electro-optical Characteristics (Ta = 250C)







PART NUMBER



DICE
MATERIAL
(COLOR)



PEAK
WAVELENGTH
(nm)

MAX.
REVERSE
CURRENT /
SEGMENT
(
mA)




VF (V)
TYP




VF (V)
MAX.

LUMINOUS INTENSITY
/ SEGMENT
AVERAGE
(IF = 20mA)

LCQD-3014TW21

InGaN
White

5,500K

10

3.0

3.3

200 mcd

LCQD-3014TB21

InGaN
Blue

465

10

3.0

3.3

138 mcd

LCQD-3014TG21

InGaN
Green

525

10

3.0

3.3

260 mcd

LCQD-3014TUR21

AlInGaP
Red

630

10

1.8

2.3

128 mcd

LCQD-3014YG21

AlInGaP
Green

571

10

1.7

2.1

80 mcd

LCQD-3014UY21

AlInGaP
Yellow

590

10

1.7

2.1

85 mcd

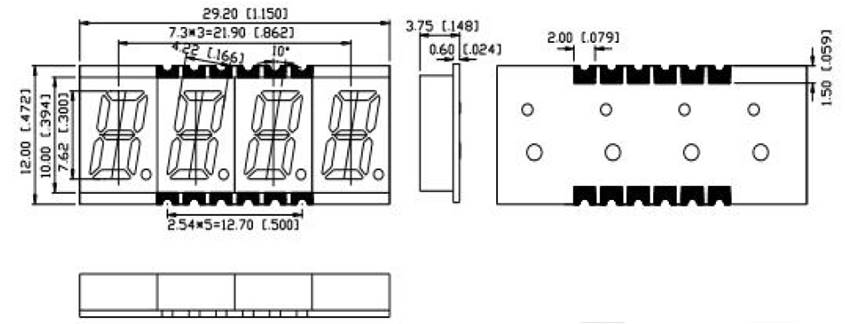

MECHNICAL DIMENSIONS



A screenshot of a cell phone

Description automatically generated

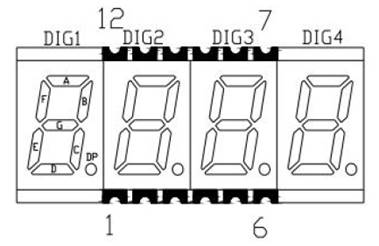

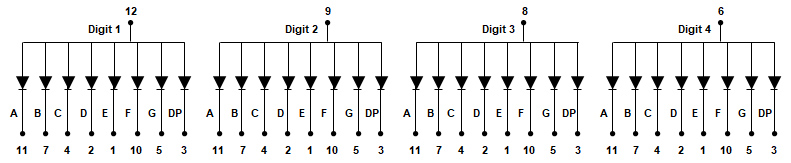

INTERNAL CIRCUIT LAYOUT



A close up of a logo

Description automatically generated



A picture containing bed

Description automatically generated
