P503TG4D: 0.5W 5mm Green LED Emitter Lamp

LC LED 0.5 Watt 5mm LED Diode in Water Clear Len 45 Degrees

Electro-optical Characteristics (Ta = 25⁰C)

PART	COLOR	TOTAL VIEWING	WAVELENGTH	OPERATING	VF (V)		TYPICAL LUMINOUS INTENSITY @ 150mA
NUMBER		ANGLE	(nm)	CURRENT	TYP.	MAX.	Min. Candela (mcd)	Max. Candela (mcd)
P503TW4D	White	45 Degree Wide Angle	6000K-6500K	150mA	2.8	3.5	48,000	73,000
P503TWW4D	Warm White		3000K		2.8	3.5	45,000	65,000
P503TB4D	Blue		465		2.8	3.5	15,500	23,500
P503TG4D	Green		525		2.8	3.5	53,000	78,000
P503JPT4D	Yellow		590		2.8	3.3	28,500	35,000
P503JPF4D	Red		630		1.8	2.4	28,500	35,000

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
Power Dissipation	500	mW
Peak Current (1)	200	mA
Forward Current (DC)	150	mA
Reverse Voltage	5	V
ESD Sensitivity	4000	V
LED Junction Temperature (2)	125	^0C
Operating Temperature	-40 to +85	^0C
Storage Temperature	-40 to +100	^0C

1) Pulse conditions of 1/10 duty, 0.1msec pulse width

2) It is recommended that the temperature of Lead Frame not be higher than 90 ºC.

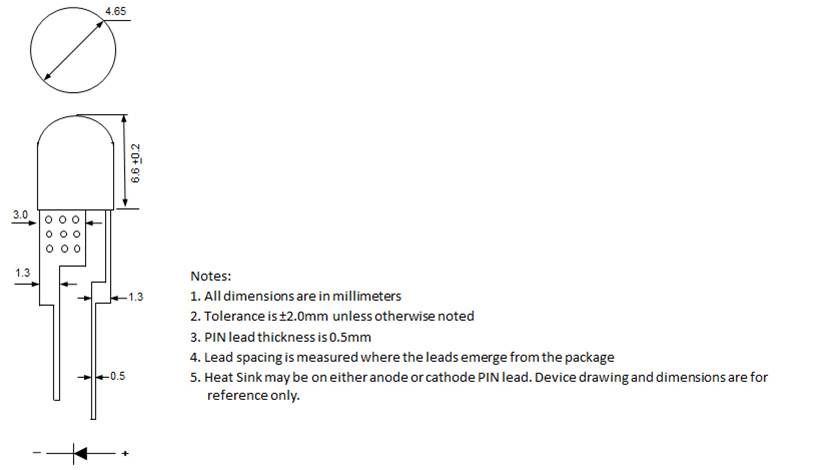

DEVICE DRAWING

LC LED Corporation
