P503JPF4D: 0.5W 5mm Red LED Emitter Lamp

LC LED 0.5 Watt 5mm LED Diode in Water Clear Len 45 Degrees

Electro-optical Characteristics (Ta = 25⁰C)

PART NUMBER	DICE MATERIAL (COLOR)	PEAK WAVELENGTH (nm)	Viewing Angle	VF (V)	VF (V)	LUMINOUS INTENSITY (IF = 120mA)
				MIN.	MAX.	MIN. (mcd)	MAX. (mcd)
P503JPF4D	AlInGaP Red	625	45	1.8	2.3	35,000	43,000

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
Power Dissipation	500	mW
Peak Current (1)	120	mA
Forward Current (DC)	120	mA
Reverse Voltage	5	V
ESD Sensitivity	4000	V
LED Junction Temperature (2)	125	^0C
Operating Temperature	-40 to +110	^0C
Storage Temperature	-40 to +120	^0C

1) Pulse conditions of 1/10 duty, 0.1msec pulse width

2) It is recommended that the temperature of Lead Frame not be higher than 90 ºC.

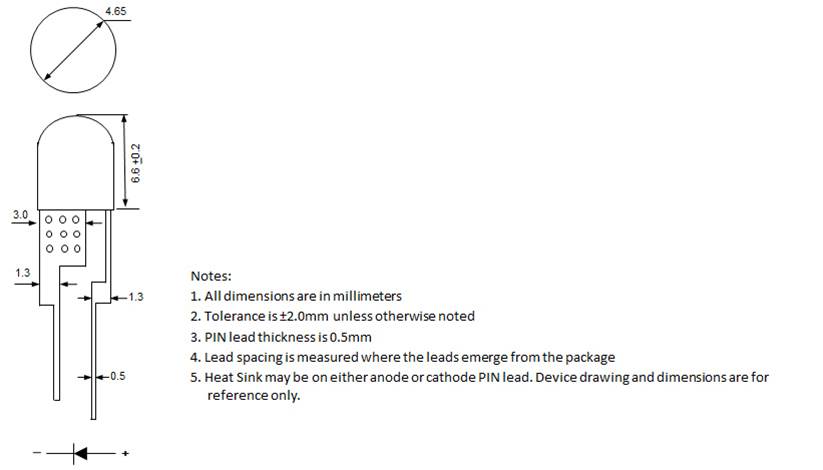

DEVICE DRAWING
