P502TW4D: 0.5W 5mm White LED Emitter Lamp

LC LED 0.5 Watt 5mm LED Diode in Water Clear Len 25 Degrees





Electro-optical Characteristics (Ta = 250C)

PART

COLOR

TOTAL
VIEWING


WAVELENGTH



OPERATING

VF (V)

TYPICAL
LUMINOUS
INTENSITY @ 150mA

NUMBER



ANGLE

(nm)

CURRENT

TYP.

MAX.

Min. Candela
(mcd)

Max. Candela
(mcd)

P502TW4D

White

25
Degree

6000K-6500K

150mA

2.8

3.4

58,500

89,500

P502TWW4D

Warm White

3000K

2.8

3.4

43,750

80,500

P502TB4D

Blue

465

2.8

3.4

20,750

31,500

P502TG4D

Green

525

2.8

3.4

56,250

90,500

P502JPF4D

Red

630

1.8

2.4

28,250

42,500

P502JPT4D

Yellow

590

2.8

3.4

28,500

43,500















































Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

Power Dissipation

500

mW

Peak Current (1)

200

mA

Forward Current (DC)

150

mA

Reverse Voltage (IR = 10mA)

5

V

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

(1)  Pulse conditions of 1/10 duty and 10msec width max.

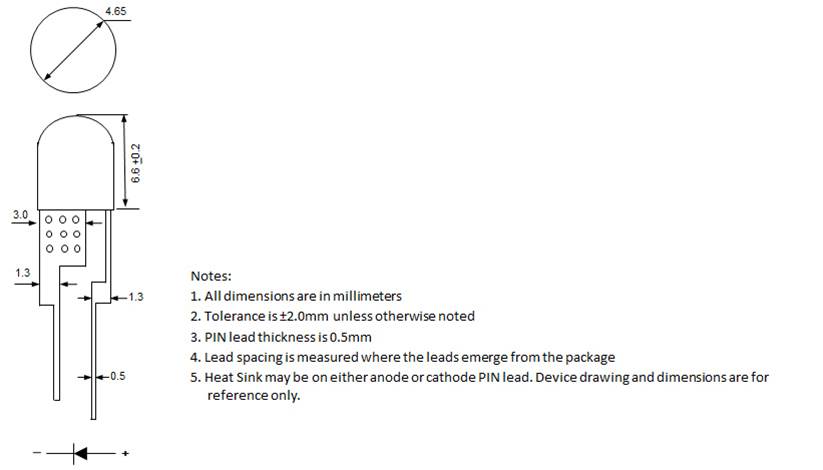

DEVICE DRAWING



LC LED Corporation
