LC LED-N710TGLB2D: 5mm Green
& Blue LED Lamp (130 Degree)
LC LED 5mm Flat Top Green and Blue LED Milky Diffused
(Common Anode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Moisture &
UV Resistance Epoxy Len |
|
(2) Super Bright
5mm Green & Blue LED Milky Len |
(5) Sun Light Viewable
LED Lamp |
|
(3) Excellent Color
Mixing Characteristics |
(6) Rugged Design
Suitable for Both Indoor & Outdoor Use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 3 seconds |
|
(1) Pulse width of 1/10 duty and 0.1msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Green) |
VF |
IF
= 25mA |
2.8 |
|
3.4 |
V |
|
Forward Voltage
(Blue) |
VF |
IF
= 25mA |
2.8 |
|
3.4 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Green) |
lD |
IF
= 25mA |
520 |
|
525 |
nm |
|
Dominant
Wavelength (Blue) |
lD |
IF
= 25mA |
460 |
|
465 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 25mA |
|
130 |
|
Deg. |
|
Luminous Intensity
(Green) |
IV |
IF
= 25mA |
2,500 |
|
5,000 |
mcd |
|
Luminous
Intensity (Blue) |
IV |
IF
= 25mA |
2,000 |
|
3,000 |
mcd |

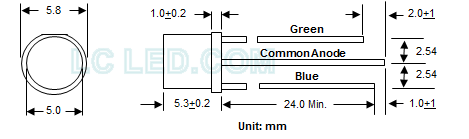

DEVICE DRAWING
|
LC LED Corporation |
