LC LED-N300TWW4D: 3mm 0.16W White
LED Lamp (30 Degree)
LC LED 3mm High Output White LED Water Clear (Common Anode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant
Part |
(3) Moisture & UV Resistance Epoxy Len |
|
(2) Super Bright
3mm White LED Lamp |
(4) Sun Light Viewable LED Lamp |
|
(5) Rugged design suitable for both indoor
& outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current (1) |
40 |
mA |
|
Peak Pulse Forward Current (2) |
150 |
mA |
|
Avg. Forward Current |
40 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 3 seconds |
|
(1) Max. DC current for 2-die in parallel
(2)
Pulse width of 1/10 duty and 0.1msec width, for long operating life,
max. pulse current for 2-die in parallel
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage |
VF |
IF
= 30mA |
3.0 |
|
3.6 |
V |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength |
lD |
IF
= 30mA |
5000K |
|
8000K |
nm |
|
Viewing
Angle |
2q1/2 |
IF
= 30mA |
|
30 |
|
Deg. |
|
Luminous
Intensity |
IV |
IF
= 30mA |
15,000 |
|
28,000 |
mcd |

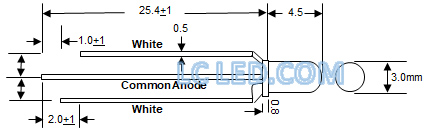

DEVICE DRAWING
|
LC LED Corporation |
