LC LED-N300TGG4D: 3mm 0.16W Green LED Lamp (30 Degree)

LC LED 3mm High Output Green LED Water Clear (Common Anode)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(3)  Moisture & UV Resistance Epoxy Len

(2) Super Bright 3mm Green LED Lamp

(4)  Sun Light Viewable LED Lamp

(5)  Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current (1)

40

mA

Peak Pulse Forward Current (2)

150

mA

Avg. Forward Current

40

mA

Operating Temperature

-40 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 3 seconds
(4.0mm or 0.157 inch from Body)

(1)  Max. DC current for 2-die in parallel

(2)  Pulse width of 1/10 duty and 0.1msec width, for long operating life, max. pulse current for 2-die in parallel







Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage

VF

IF = 30mA

3.0



3.6

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength

lD

IF = 30mA

520



525

nm

Viewing Angle

2q1/2

IF = 30mA



30



Deg.

Luminous Intensity

IV

IF = 30mA

18,000



30,000

mcd

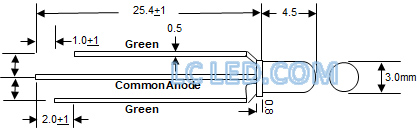

DEVICE DRAWING



A screenshot of a cell phone

Description automatically generated


LC LED Corporation
