LC LED-310TWW4D: 3mm Flat Top
Warm White LED (110 Degree)
|
|
|
|
(1)
RoHS Compliant Part |
(4)
Sun Light Viewable |
|
(2)
Super Bright LED Emitter |
(5)
Rugged design suitable for both indoor & outdoor use |
|
(3)
Moisture & UV Resistance Epoxy |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
25 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Reverse Voltage (IR
= 100mA) |
5 |
V |
|
Avg. Forward Current (Pulse Operation) |
30 |
mA |
|
Operating Temperature |
-40
to +100 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
(1) Pulse conditions of 1/10 duty cycle and
0.10msec max. width
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward Voltage |
VF |
IF
= 25mA |
3.0 |
3.5 |
V |
|
|
Reverse Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant Wavelength |
lD |
IF
= 25mA |
|
3000 |
|
K |
|
Viewing Angle |
2q1/2 |
IF
= 25mA |
|
110 |
|
Deg. |
|
Luminous Intensity |
IV |
IF
= 25mA |
1,000 |
1,950 |
mcd |

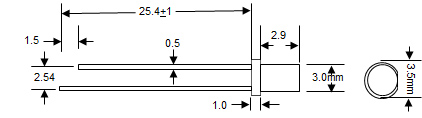

DEVICE DRAWING
|
LC LED Corporation |
