250TG2G:  2mm x 5mm Green Rectangular LED Lamp Milky Diffused



Rectangular Indicator LED Lamp (110 Degree)

PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Special Colors:  White, Blue & Warm White

(2) 2mm x 5mm Rectangular LED in Milky Diffused Len

(5) Rugged & Reliable Design

(3) High Bright LED Die Material







Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

250TW2G

InGaN White

110

5500K

3.0

3.8

1,000

1,800

250TWW2G

Warm White

3300K

3.0

3.8

1,000

1,700

250TB2G

InGaN Blue

465

3.0

3.8

900

1,700

250TG2G

InGaN Green

525

3.0

3.8

2,000

3,500

250AUR2G

AlInGaP Red

625

1.8

2.2

750

1,250

250UY2G

AlInGaP Yellow

590

1.8

2.2

750

1,250





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty, 10msec pulse width

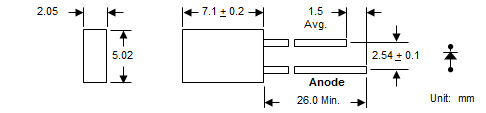

DEVICE DRAWING






LC LED Corporation
