180UY2G: 1.8mm Yellow Indicator LED Lamp

1.8mm Indicator LED Lamp Milky Len (75 Degree)

PRODUCT DESCRIPTION
(1) RoHs Compliant Part	(4) Colors: White, Blue, Red & Yellow, Green
(2) 1.8mm Indicator LED Lamp	(5) Rugged & Reliable Design
(3) High Bright LED Die Material

Electro-optical Characteristics (Ta = 25⁰C)

PART	DICE MATERIAL	VIEWING	DOMINANT	FORWARD VOLTAGE		LUMINOUS INTENSITY @ 20mA
NUMBER	COLOR	ANGLE (Degree)	WAVELENGTH (nm)	MIN. (V)	TYP. (V)	MIN. (mcd)	Max. (mcd)
180TW2G	White	75	5500K	3.0	3.6	3,000	6,000
180TP2G	Purple		–	3.0	3.6	3,000	5,000
180TWW2G	Warm White		3300K	3.0	3.6	2,500	5,500
180TB2G	Blue		465	3.0	3.6	1,500	2,500
180TG2G	Green		525	3.0	3.6	5,000	8,500
180AUR2G	Red		625	1.8	2.2	1,200	2,000
180UY2G	Yellow		590	1.8	2.1	1,000	2,000

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
DC Forward Current	30	mA
Peak Pulse Forward Current ^(1)	100	mA
Operating Temperature	-30 to +85	^0C
Storage Temperature	-40 to +100	^0C
Lead Soldering Temperature	260^0C for 6 seconds (1.0mm or 0.63 inch from Body)

(1) Pulse conditions of 1/10 duty, 10msec max. pulse width

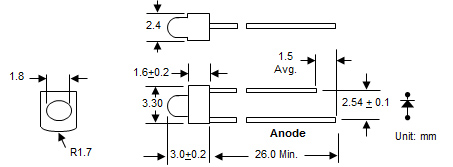

DEVICE DRAWING
