180TW2G:  1.8mm White Indicator LED Lamp



1.8mm Indicator LED Lamp Milky Len (75 Degree)



PRODUCT DESCRIPTION



(1) RoHs Compliant Part

(4) Colors:  White, Blue, Red & Yellow, Green

(2) 1.8mm Indicator LED Lamp

(5) Rugged & Reliable Design

(3) High Bright LED Die Material







Electro-optical Characteristics (Ta = 250C)

PART

DICE MATERIAL

VIEWING

DOMINANT

FORWARD VOLTAGE

LUMINOUS INTENSITY @ 20mA

NUMBER

COLOR

ANGLE (Degree)

WAVELENGTH
(nm)

MIN.
(V)

TYP.
(V)

MIN.
(mcd)

Max.
(mcd)

180TW2G

White

75

5500K

3.0

3.6

3,000

6,000

180TP2G

Purple

3.0

3.6

3,000

5,000

180TWW2G

Warm White

3300K

3.0

3.6

2,500

5,500

180TB2G

Blue

465

3.0

3.6

1,500

2,500

180TG2G

Green

525

3.0

3.6

5,000

8,500

180AUR2G

Red

625

1.8

2.2

1,200

2,000

180UY2G

Yellow

590

1.8

2.1

1,000

2,000





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current

30

mA

Peak Pulse Forward Current (1)

100

mA

Operating Temperature

-30 to +85

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 6 seconds
(1.0mm or 0.63 inch from Body)

(1)  Pulse conditions of 1/10 duty, 10msec max. pulse width

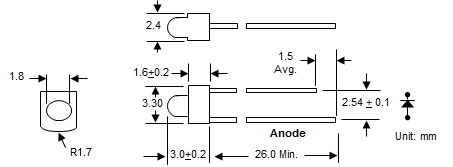

DEVICE DRAWING
