HIGHLIGHTS |
APPLICATIONS |
·
High Lumens White LED Emitter ·
Up to 700mA Drive Current ·
Low Thermal Resistance ·
RoHs Compliant Part |
·
Sun Light Viewable ·
Channel and Backlighting ·
Indoor and Outdoor Lighting |
Absolute Maximum Rating
(Ta = 250C)
PARAMETER |
MAXIMUM RATING |
UNITS |
Power |
3 |
W |
DC Forward Current |
700 |
mA |
Peak Pulse Forward Current (1) |
1000 |
mA |
Operating Temperature |
-30
to +85 |
0C |
Storage Temperature |
-40
to +100 |
0C |
Junction Temperature |
135 |
0C |
Lead Soldering Temperature |
2600C
for 5 Seconds Max. (1.6mm from Body) |
(1)
Pulse conditions of 1/10 duty and 0.1msec width
Electro-optical
Characteristics (Ta = 250C)
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
DC Forward
Voltage |
VF |
IF
= 700mA |
3.0 |
3.6 |
V |
|
Luminous
Intensity |
IV |
IF
= 350mA |
90 |
|
110 |
lm |
Luminous
Intensity |
IV |
IF
= 700mA |
160 |
|
210 |
lm |
Viewing Angle |
2q1/2 |
IF
= 700mA |
140 |
Deg. |
||
Dominant
Wavelength |
lD |
IF
= 700mA |
5000 |
6500 |
K |
MECHANICAL
DIMENSIONS

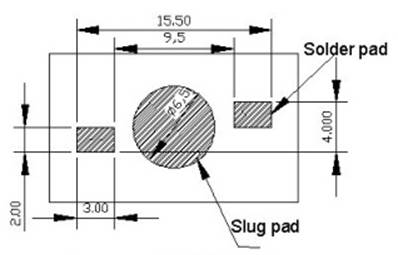

SOLDER
PAD PROFILE
LC LED Corporation |
