LCE-030RGB4P: 9W High Power RGB LED Emitter (120 Degree)

PRODUCT DESCRIPTION
(1) RoHs Compliant Part	(4) Moisture & UV Resistance Epoxy Len
(2) High Power 3W Red, 3W Green & 3W Blue LED Emitter	(5) Sun Light Viewable LED Lamp
(3) Excellent Color Mixing Characteristics	(6) Wide Angle of 120 Degrees

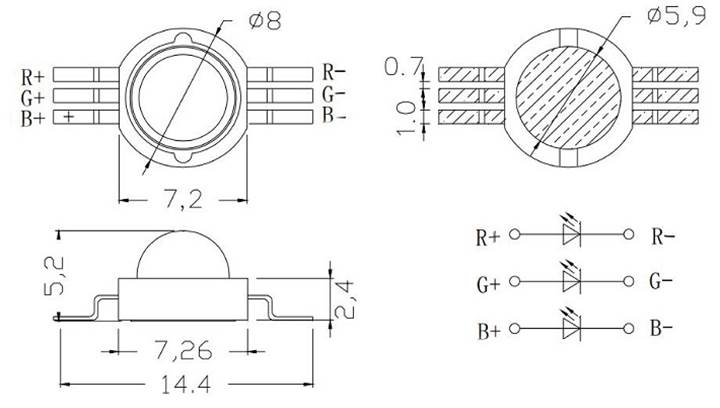

PACKAGE DIMENSIONS

Absolute Maximum Rating (Ta = 25⁰C)

PARAMETER	MAXIMUM RATING	UNITS
DC Forward Current	700	mA
Peak Pulse Forward Current ^(1)	1000	mA
Reverse Voltage	5	V
Operating Temperature	-30 to +85	^0C
Storage Temperature	-40 to +100	^0C
Derating Coefficient from 30^0C	0.5	mA / ^0C
Lead Soldering Temperature	260^0C for 5 Seconds Max. (1.6mm from Body)

(1) Pulse conditions of 1/10 duty and 0.1msec width

Electro-optical Characteristics (Ta = 25⁰C)

PARAMETER	SYMBOL	CONDITIONS	MIN.	TYP.	MAX.	UNIT
DC Forward Voltage (Red)	VF	IF = 700mA	2.0		2.5	V
DC Forward Voltage (Green)	VF	IF = 700mA	3.0		3.5	V
DC Forward Voltage (Blue)	VF	IF = 700mA	3.0		3.5	V
Luminous Intensity (Red)	IV	IF = 700mA	80		95	lm
Luminous Intensity (Green)	IV	IF = 700mA	140		170	lm
Luminous Intensity (Blue)	IV	IF = 700mA	35		48	lm
Viewing Angle	2q1/2	IF = 700mA	120			Deg.
Dominant Wavelength (Red)	lD	IF = 700mA	620		625	nm
Dominant Wavelength (Green)	lD	IF = 700mA	520		525	nm
Dominant Wavelength (Blue)	lD	IF = 700mA	460		465	nm

Electrical Characteristics (Ta = 25⁰C)

PARAMETER	DYNAMIC RESISTANCE (Ω)	VF TEMPERATURE COEFFICIENT (mV / ^0C)	THERMAL RESISTANCE (JUNCTION TO SOLDER POINT) (^0C / W)
Red	1.0	-2	10
Green	1.0	-2	10
Blue	1.0	-2	10

LC LED Corporation
